- Input voltage：220V/110V
- Output power：50W
- Output voltage(Max)：15KV
- Output current(Max)：10mA
- Custom：Yes
Features:
1. Universal AC input / Voltage range( 176VAC to 264VAC, 90VAC~130VAC is optional)
2.Protections: Overload / Over voltage /short circuit
4.Small size and high efficiency
5.Full load aging test and low output ripple
6.Output powe: 5W/10W/20W/50W
7.Application: Air cleaners/purifier, Air purification, fume purification, flue gas denitration, etc.,etc.
8.We can customize it for you according to your requirements.
WG4-5/10/20/50W One-output Power Supply
Product Features
1. Regulation output current by the potentiometer
2. Stable output voltage
5W Air Purifier Ozonator Purify Cleaner Power Supply
10 watt home or office use swith power supply for air cleaner/purifier

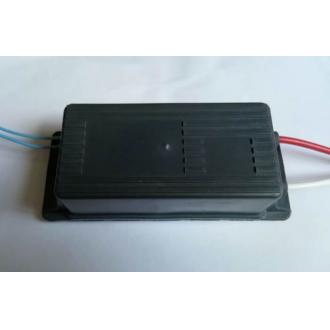

20W air cleaner / purifier power supply
5W/10W/20W/ 50W 5~15KV air cleaner/purifier switch power supply with small size
3.Compliance to worldwide safety regulations for lighting
Model
WG4-5
WG4-10
WG4-20
WG4-50
Input Voltage
176~264VAC
Input Frequency
47~63Hz
Output Power
5W
10W
20W
50W
Output Voltage
DC 3~10mA(max)
Output Current
DC 5-15KV(max)
Response Time
≤1mS
Interface Control
TTL interface, work operation, voltage adjustable, work indication, fault indication
Power Regulation
Power Switch
No need control, or you can use a external swith to control
Temperature
-10~+40℃
Humidity
≤85%
Cooling Mode
Air-cooling
Dimensions
146*60*40(mm)
Application
Air purification, fume purification, flue gas denitration, etc.
