- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：50V
- Output current(Max)：20A
- Output frequency：100Hz
- Custom：Yes
Parameters:
|

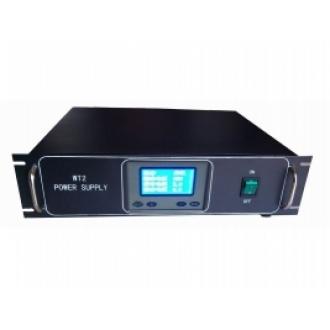

Product Name |
Arbitrary waveform pulse power supply |
|
Items No. |
WT2MC-DJ-1KW |
|
Type |
CNC intelligence power supply, single phase |
|
Input Voltage |
AC220±10%V |
|
Output Power |
1KW |
|
Output Current |
20A |
|
Output Voltage |
50V |
|
Output Frequency |
100hz |
|
Output Wave |
Custom constant voltage, constant current, constant power |
|
Waveform |
Can output arbitrary waveform. Such as sine wave, square wave, triangle wave, trapezoid wave, sawtooth wave, ect . |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Power Switch |
DB9 pin connector |
|
Display Mode |
Chinese- English LCD display |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
-35~+45℃ |
|
Humidity |
≤85% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
400*95*370(mm) |
|
Disturbance Display |
LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces. |
|
Application Fields |
For sewage treatment, plasma, and other occasions requiring pulsed signals. |
Control Mode:
Computer panel and buttons control
Analog signal control: TTL potential, can control the work stop, the output voltage, output current or output power, external open circuit protection (generally for water protection)
digital interface control can be custoimization: RS-485 communications, RS-232 interface
Feature:
Small volume, light weight, high efficiency, simple structure,easy operation, powerful, stable and reliable.
Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.
Can plate insulation film, do not produce arc, load to adapt to a wide range.
