- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：5KV
- Output current(Max)：200mA
Specification:
|
Name |

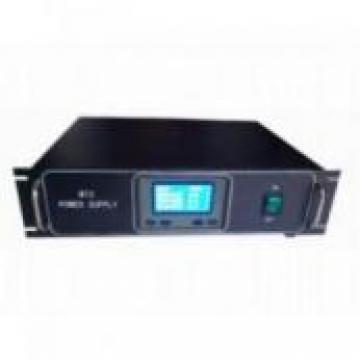

Direct current high voltage bombardment power supply |
|
|
Items No. |
WT2-JS-HJ-DC-1KW |
|
|
Type |
CNC intelligence power supply |
|
|
Input Voltage |
AC220V±10% |
|
|
Output |
Power |
1KW |
|
|
Current |
20mA~200mA |
|
|
Voltage |
5KV |
|
|
Wave form |
Direct current |
|
|
Mode |
Custom constant voltage, constant current, constant power |
|
Regulation Precision |
≤1% |
|
|
Efficiency |
≥90% |
|
|
Power Factor |
cosΦ≥0.9 |
|
|
Display Mode |
Chinese-English LCD display |
|
|
Display Content |
Working state, output voltage, output current, set value |
|
|
Output Protection |
Output overvoltage, output overcurrent and output offset |
|
|
Input Protection |
Output overvoltage, Output undervoltage, input overcurrent, open phase |
|
|
Safety Protection |
Grounding protection, leakage protection, external control protection, lightning protection, overheating |
|
|
Insulation Class |
B |
|
|
Protect Grade |
IP20 |
|
|
Protection Response Time |
1uS |
|
|
Temperature |
0~35℃ |
|
|
Humidity |
≤80% |
|
|
Cooling mode |
Air-cooling |
|
|
Dimensions |
400*95*370(mm) |
|
