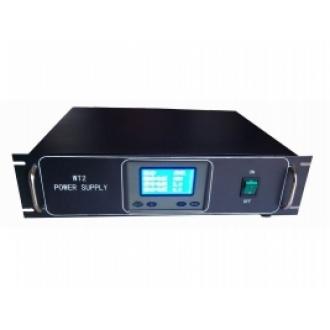

Arbitrary Waveform Scientific Research Power Supply WT2 Pulse Switching Power Supply

Price: $1666.6 $1666.6
Arbitrary Waveform Scientific Research Power Supply WT2 Pulse Switching Power Supply
Rating:
100 %
0 comments
  • Input voltage:220V
  • Output power:1KW
  • Output voltage(Max):50V
  • Output current(Max):20A
  • Output frequency:100Hz
  • Custom:Yes
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction

Parameters:



Product Name

Arbitrary waveform pulse power supply

Items No.

WT2MC-DJ-1KW

Type

CNC intelligence power supply, single phase

Input Voltage

AC220±10%V

Output Power

1KW

Output Current

20A

Output Voltage

50V

Output Frequency

100hz

Output Wave

Custom constant voltage, constant current, constant power

Waveform

Can output arbitrary waveform. Such as sine wave, square wave, triangle wave, trapezoid wave, sawtooth wave, ect .

Regulation Precision

≤1%

Efficiency

≥90%

Power Factor

cosΦ≥0.9

Power Switch

DB9 pin connector

Display Mode

Chinese- English LCD display

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Input Shell Resistance

≥20MΩ

Output Shell Resistance

≥20MΩ

Input Withstand Voltage

2000V/1min

Output Withstand Voltage

3500V/1min

Temperature

-35~+45℃

Humidity

≤85%

Cooling mode

Air-cooling

Dimensions

400*95*370(mm)

Disturbance Display

LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces.

Application Fields

For sewage treatment, plasma, and other occasions requiring pulsed signals.



Control Mode:

Computer panel and buttons control

Analog signal control: TTL potential, can control the work stop, the output voltage, output current or output power, external open circuit protection (generally for water protection)

digital interface control can be custoimization: RS-485 communications, RS-232 interface



Feature:

Small volume, light weight, high efficiency, simple structure,easy operation, powerful, stable and reliable.

Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.

Can plate insulation film, do not produce arc, load to adapt to a wide range.
