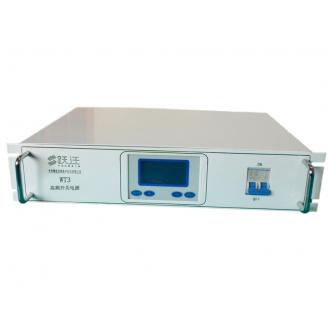

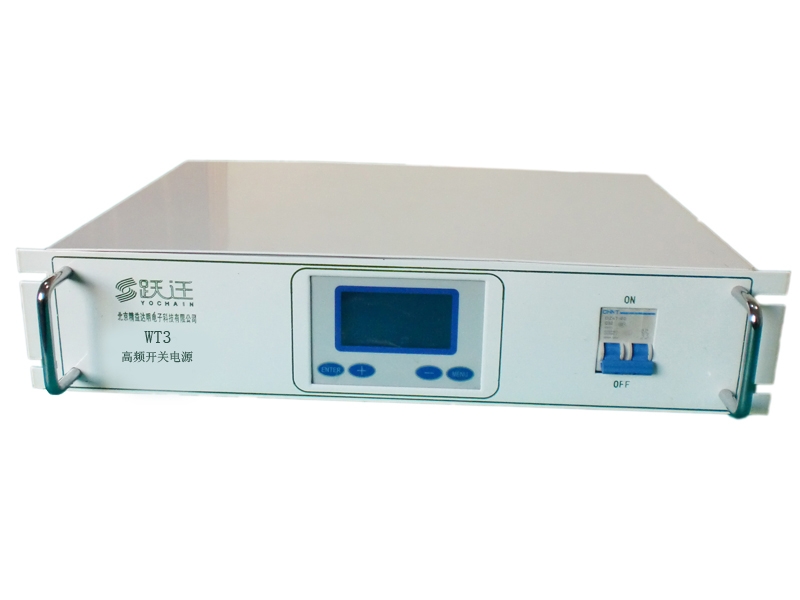

10KV DBD Wide Amplitude Atmospheric Plasma Cleaning Power Supply

3KW, DBD plasma cleaning power supply, used for barrier discharge at normal pressure, plasma cleaning, etching, activati
Price: $3333.3 $3333.3
10KV DBD Wide Amplitude Atmospheric Plasma Cleaning Power Supply
  • Time: 2017-12-25
  • Weight:0gram
  • Serial number:WT3-10KV-DBD
Rating:
100 %
0 comments
  • Input voltage:220V
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction

Main technical paramters:

Product Name

Dielectric barrier discharge plasma power supply

Items No.

WT3DBD-10KV

Input Voltage

AC220±10%V

Output

Power

3KW

Current

0.3A

Voltage

10KV

Frequency

20~50Khz

Waveform

quasi-sine-wave

Output Mode

Custom constant voltage, constant current, constant power

Regulation Precision

≤1%

Efficiency

≥80%

Power Factor

cosΦ≥0.9

Power Switch

DB9 pin connector

Display Mode

Chinese- English LCD display

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Input Shell Resistance

≥20MΩ

Output Shell Resistance

≥20MΩ

Input Withstand Voltage

2000V/1min

Output Withstand Voltage

3500V/1min

Temperature

0~35℃

Humidity

≤85%

Cooling mode

Air-cooling

Dimensions

480*95*370(mm)

Note

Factory default TTL analog interface and RS-485 digital interface

Disturbance Display

LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces.

Application Fields

ozone, dielectric barrier discharge, plasma cleaning, plasma generated experimental, etc.



Application:

ozone generation, dielectric barrier discharge, plasma cleaning and plasma formation.
