Specification:
|
Product Name |

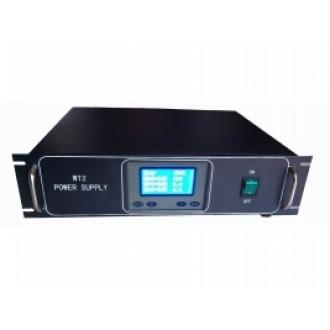

Dielectric Barrier discharge power supply for plasma cleaner |
|
|
Items No. |
WT2DBD-10KV |
|
|
Input Voltage |
AC220±10%V |
|
|
Output |
Power |
1KW |
|
Current |
0.1A |
|
|
Voltage |
10KV |
|
|
Frequency |
20~50khz |
|
|
Waveform |
quasi-sine-wave |
|
|
Output Mode |
Custom constant voltage, constant current, constant power |
|
|
Regulation Precision |
≤1% |
|
|
Efficiency |
≥80% |
|
|
Power Factor |
cosΦ≥0.9 |
|
|
Display Mode |
Chinese-English LCD display |
|
|
Display Content |
Working state, output voltage, output current, set value |
|
|
Output Protection |
Overvoltage, overcurrent and offset |
|
|
Input Protection |
Overvoltage, undervoltage, overcurrent, open phase |
|
|
Insulation Class |
B |
|
|
Protect Grade |
IP20 |
|
|
Protection Response Time |
1uS |
|
|
Input Shell Resistance |
≥20MΩ,＜1Ω |
|
|
Output Shell Resistance |
≥20MΩ，＜1Ω |
|
|
Input Withstand Voltage |
2000V/1min |
|
|
Output Withstand Voltage |
3500V/1min |
|
|
Temperature |
0~35℃ |
|
|
Humidity |
≤85% |
|
|
Cooling mode |
Air-cooling |
|
|
Dimensions |
400*95*370(mm) |
|
Application:
ozone generation, power supply for cnc plasma, plasma cleaning and plasma formation.
