- Input voltage：380V
- Output power：60KW
- Output voltage(Max)：50KV
- Output current(Max)：2000A
- Adjustable：Yes
- Custom：Yes
Specification:
|
Product Name |

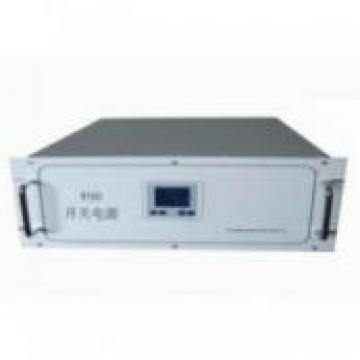

DC magnetron sputtering plating power supply |
|
Items No. |
WT60-DC-60KW |
|
Type |
CNC intelligence power supply |
|
Input Voltage |
AC380V±10% |
|
Output Power |
60KW |
|
Output Current |
0.8~2000A |
|
Output Voltage |
30V~50KV |
|
Output Wave |
Custom constant voltage, constant current, constant power |
|
Waveform |
mono-polar DC |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Display Mode |
Chinese-English LCD display |
|
Display Content |
Working state, output voltage, output current, set value |
|
Output Protection |
Output overvoltage, output overcurrent and output offset |
|
Input Protection |
Output overvoltage, Output undervoltage, input overcurrent, open phase |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
0~35℃ |
|
Humidity |
≤80% |
|
Cooling mode |
Water-cooling |
|
Dimensions |
600*230*600(mm) |
|
Install Size |
460*70(mm) (cabinet) |
|
Note |
Factory default analog interface |
