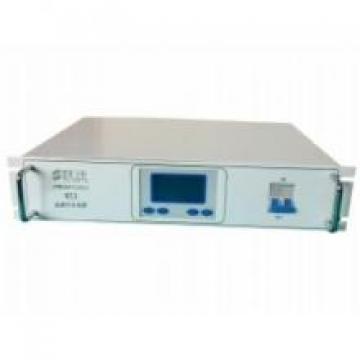

WT3 High power DC switching power supply

• Input voltage：220V/110V
• Output power：3KW
• Output voltage(Max)：5KV
• Output current(Max)：600A
• Adjustable：Yes
• Custom：Yes
• Cooling mode：Air cooling

Parameter:

1. Name: high voltage pwoer supply
2. Number: WT3-HV-30KV-3KW
3. Input Voltage: AC 220V±10%; AC 110V(options)
4. Output Voltage: 30KV
5. Output Current: 100mA
6. Output Power: 3000W
7. Work Temperature: -35~45℃
8. Humidity: ≤85%
9. Cooling Mode: air cooling
10. Dimension: 480*95*370(mm)
11. Control Mode: PC panel press buttons
12. Interface Control: TTL level, work, stop, adjust output voltage
13. Analog signal control: TTL level, work, stop, output voltage, output current, output power, open circuit protection (generally used for water flow protection)
14. Steady voltage, steady current, steady power, all adaptive, automatic switching
15. Digital Interface: RS485, RS232(options)
16. Display Mode: English/Chinese LCD display screen, various parameters and status.
17. External Control Interface Output: voltage signal
18. Feature: short circuit protection, water flow protection
19. Efficiency: ≥90%
