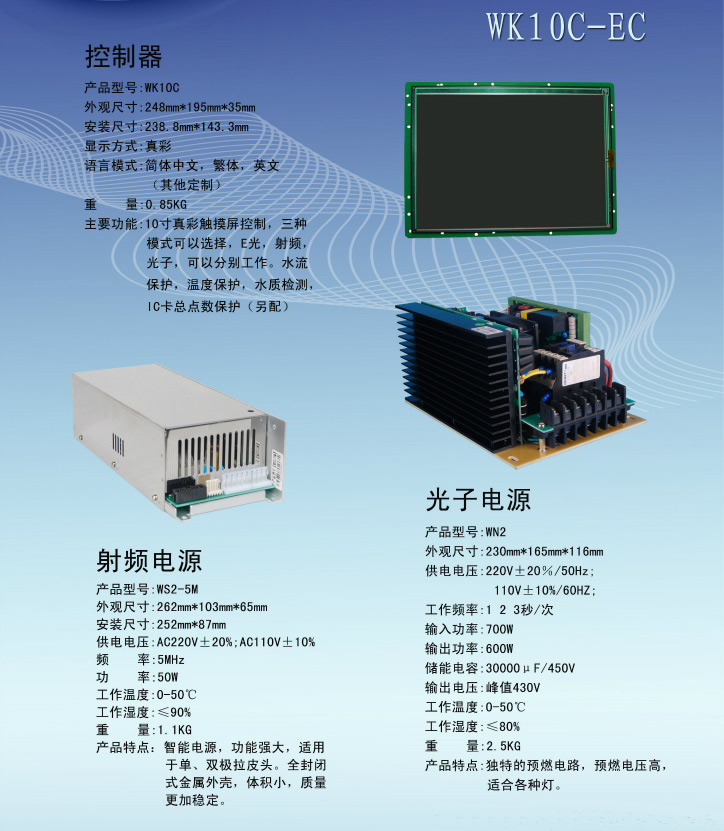

WK10C-EC Power system:
* WK10C controller with LCD display
* WN2 power supply: 800W IPL
* WS2 power supply: 50W RF

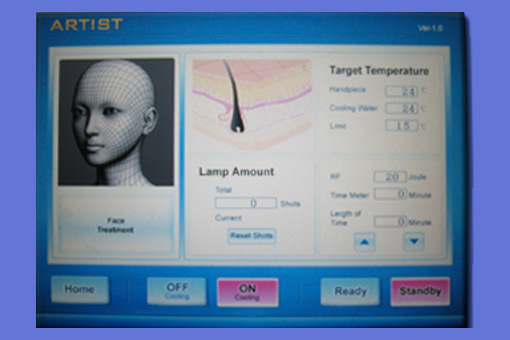

WK10C controller parameter:
Item No.: WK10C
Size: 10.4 inch
Display mode: truecolor
Language: Simple Chinese, Traditional Chinese, English, other customize
Function: Software voltage regulation, frequency regulation, water protection, water quality detection, temperature detection, work points

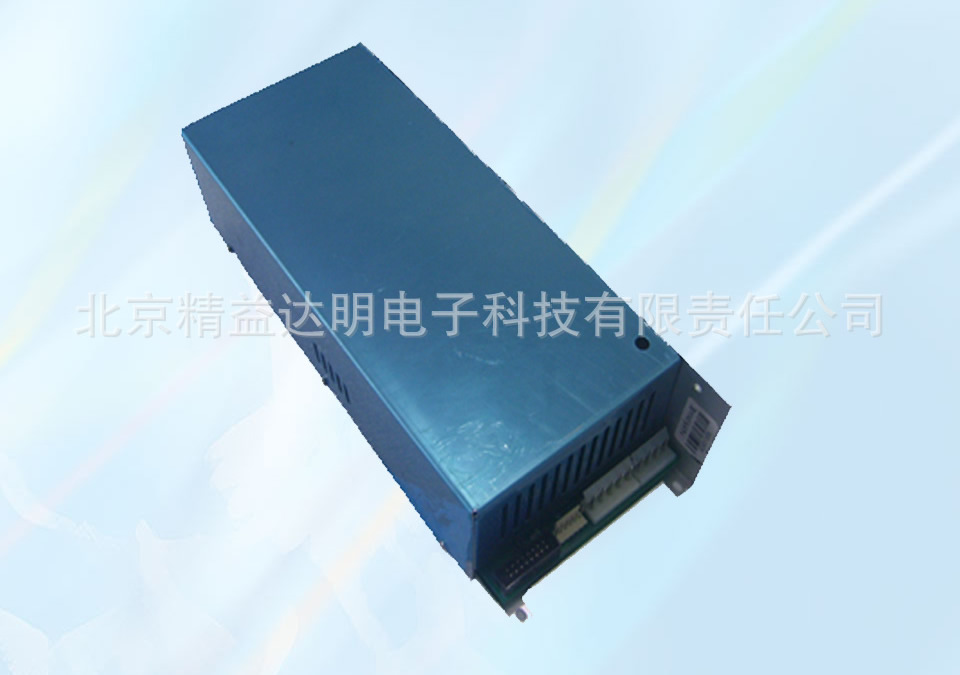

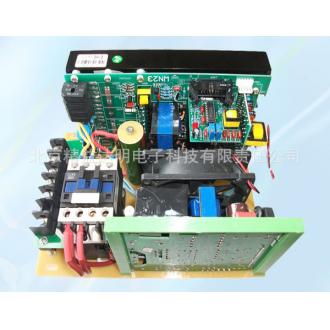

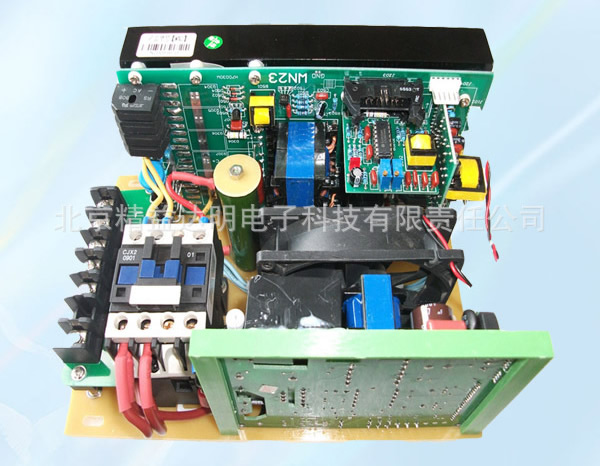

WN2 IPL 800W power supply parameter:
Name
IPL power supply
No.
WN2 800W
Type
High power pulse
Input voltage
AC 220V±20%
AC 110V±10% (customazation)
Input frequency
50Hz, 60Hz
50Hz, 60Hz
Input current
5A
10A
Input power
1000W
Output power
800W
Output voltage
Reservoir capacitance
10000uf-30000uf/450V
Work current
Average 4A, 5A up to 20A
External dimension
230mm*165mm*116mm
WS2 50W RF power supply parameter:
Name
RF power supply
No.
WS2-5MX
Type
RF
Max. output power
50W (adjustable)
Work frequency
5MHz
Input voltage
AC 220V±20% ; AC110V±10% (optional)
External dimension
262mm*103mm*65mm
Install dimension
153mm*87mm
Work Temperature
-10℃--40℃
Humidity
≤90%
Weight
0.94kg
Controller
A.Use our company's controller
B.Use external device to control through data interface
C. Use pedals switching and potentiometer for power supply own's controller to control
Up to 430V
