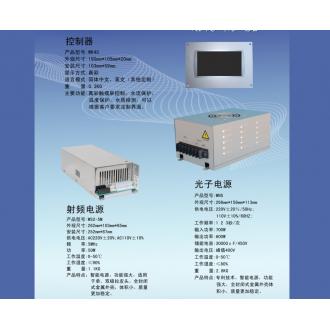

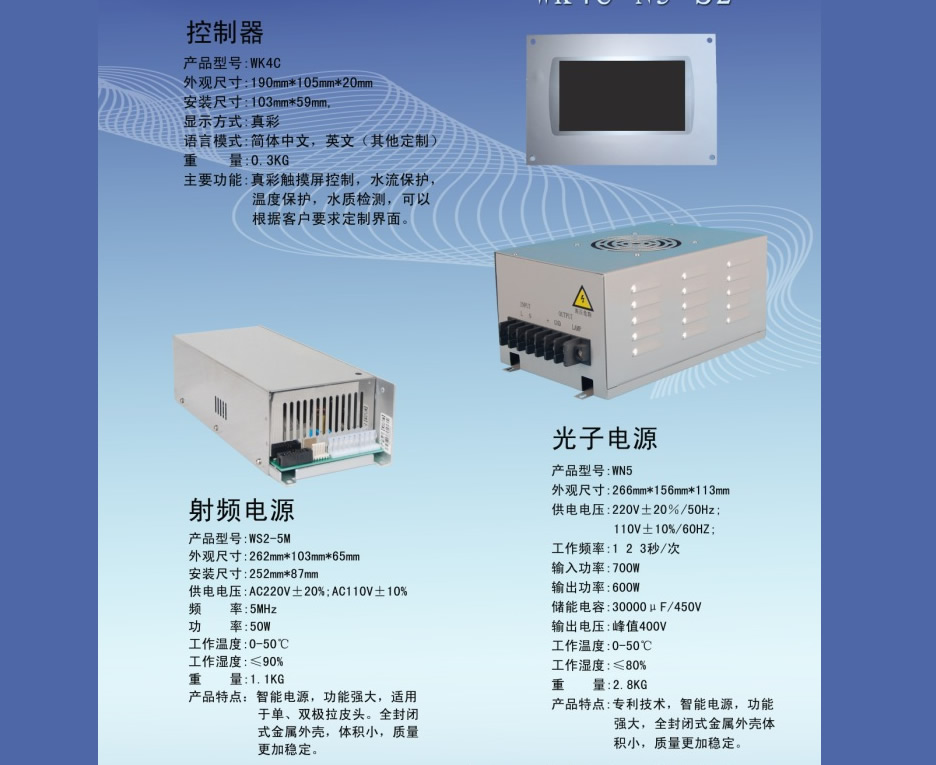

WK4C-N5-S2 power system
* WK4C Controller
* WS2-5MX 5MHZ 50W RF power supply
* WN5 600W IPL power supply
1. WK4C Touchscreen Controller
Panel Size: 184*137*30(mm)
Install Size: 173*125(mm)
Display Mode: 4.7 inch truecolor
Display Dot Matrix: 480*272
Color: 64000
Language Switch: Chinese, English, other can be customized
Output Voltage regulation: 50
2. WN5-600W IPL Power Supply
Input: 220V±20%/50Hz, 60Hz; 110V±10%/, 60Hz
Input Power: 700W
Output Power: 600W
Reservoir capacitance: 30000μF/450V
Work Current: average 4A, peak 20A
Output Current: peak 200~400A
Output Voltage: peak 430V
Dimension: 230*165*120(mm)
3. WS2-50W RF Power Supply
Input: AC 220V; AC 110V
Output Power: 50W(adjustable)
Work Frequency: 5MHz
Work Current: average 1A, peak 5A
Dimension: 262*103*65(mm)
Install Size: 153*87(mm)
