- Input voltage：380V
- Output power：43KW
- Output voltage(Max)：24V
- Output current(Max)：2000A
- Adjustable：Yes
- Custom：No
- Cooling mode：Air cooling
Technical indicators
Output current: 0 a - 2000 - a (adjustable); Output voltage: 0 v and 24 v (adjustable)
Start the way: on load soft start stop; Output performance: constant voltage/constant current conversion;
Efficiency: 89% or higher; Power factor: 0.9 or higher
Rated input voltage: 380 vac + / - 10%; Rated input current: 81 a
Frequency ratio: 50 ~ 60 hz; 43 kw power:
Accuracy: 1% or less; Shell size: L660 * H960 W450 (mm)
Cooling: air cooling;

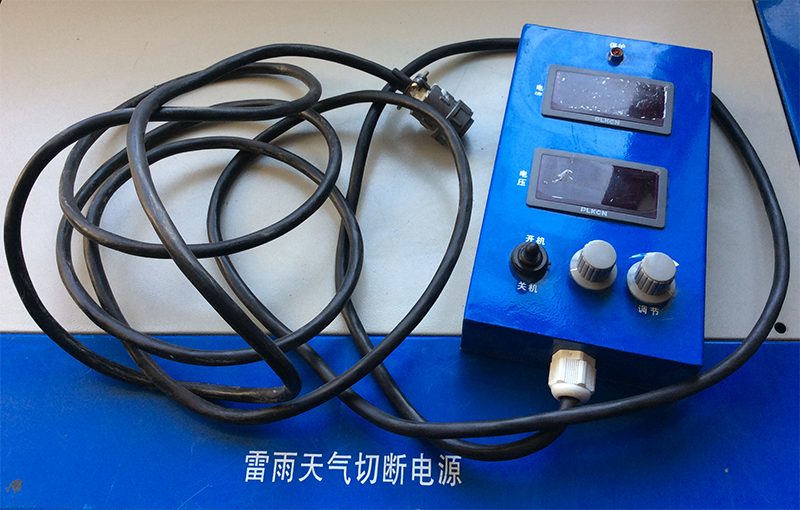

Display mode: remote control box of digital display the output voltage, current, the fault indicator
Protection: input overvoltage, undervoltage, over current, output short circuit protection, double overheating protection
Power warranty: one year free maintenance, life-long warranty.
Product features:
1. Advanced technology, mainly imported "IGBT" module power component, is given priority to with superfine crystal (nanocrystalline soft magnetic material transformer magnetic core.
2. High efficiency: compared with silicon controlled rectifier power saving 15% - 30%. For electroplating enterprises to reduce costs play an important role.
3. High precision, high stability, low ripple, main control part adopts the double closed-loop control technology makes the grid voltage fluctuation had no effect on the output and load change.
4. The output voltage and current is adjustable, and can be run in two kinds of voltage regulator or steady flow, can adapt to the use of different occasions.
5. Beautiful and reasonable structural design, the overall sealing effect is good, can run in harsh environments.
6. Protect the function is all ready, have pressure limiting, current limit and overvoltage, overcurrent, overheating, etc protection functions.
Scope of application:
Widely used in heating, electrolysis, electroplating, oxidation, polishing and other industries.
