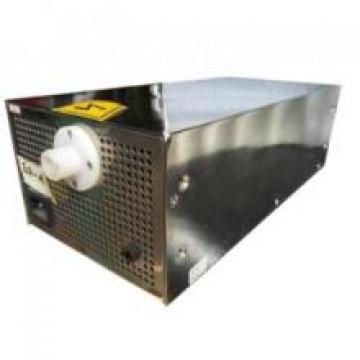

WE2X Series High Voltage Switching Power Supply-Industrial power supply

Add to cart

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

WE2-AG series high-frequency carbon dioxide laser power supply has the advantages of good frequency characteristics, easy start-up, and high luminous efficiency. The pre-ionization function can maximize the life of the laser and improve the overall performance (optional). The power supply unique over-current protection and no-load protection, allowing you to use more secure and more confidence.
1 The main technical parameters:
(1) Input voltage: AC 220V±10%; AC 110V (ordering)
(2) Maximum output voltage: DC -50KV
(3) Maximum output current: DC 30mA
(4) Response speed: ≤1mS
(5) Optocoupler interface control: DC(5±2V) / light output
(6) Operating environment: Temperature (-10 to 40) °C Humidity: ≤ 85%
(7) Laser power adjustment:
1 Potentiometer adjusts the output current of the laser power supply.
2 controlled by PWM (amplitude TTL level).
(8) The laser switch: controlled by a manual button or by an optocoupler interface.
(9) Overall dimensions: 280mm*225mm*113mm

2 main features:
(1) Make the laser frequency characteristics good and the luminous efficiency is high
(2) unique over-current protection and no-load protection, allowing you to use more secure and more confidence.
(3) Preionization function is optional, which can maximize the life of the laser and improve the overall performance.
(4) Adjustable laser power:
A. Adjust the output current of the laser power supply from the point position.
B, controlled by PWM (amplitude TTL level)
(5) Laser switch: controlled by manual button or by optocoupler interface
3 trial range:
Mainly used for laser cutting, engraving, welding, marking and so on. Laser processing machines are an essential part of the laser. Its power and stability have a direct impact on the corresponding performance of the laser.
