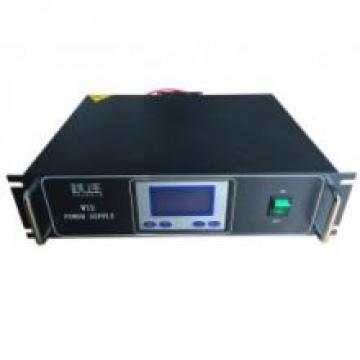

WT2-1.5KW High Power DC Switching Power Supply

The main technical parameters

The product name

1.5 KW dc switching power supply

Product model

WT2-1.5KW

Product brand

Yochain

Power source type

CNC intelligent power supply

The input voltage:

AC220V±10%

The output

Power:

1.5KW

Current:

0.3 ~

Voltage:

5V~5KV

waveform

dc

way

Custom constant voltage and constant current

Adjust the accuracy

1% or less

The efficiency of

90% or higher

The power factor

Cos Φ 0.9 or higher

The power switch

DB9 pin interface

Control mode:

Computer control panel buttons

Analog signal control: the TTL level, can control the work stopped and the output voltage or output current or power output, the external open circuit protection (generally for water protection)

Digital interface control: 485 communication.232 interface can also be customized

Display mode:

Liquid crystal display in both Chinese and English

Insulation class

Class B

Protection grade

IP20

Protect the response time

1uS

The input

Resistance of enclosure

Acuity Ω

The output

Input pressure of enclosure

2000V/1min

Input to output pressure

3500V/1min

Using the environment

Temperature:

0 ~

Humidity:

85% or less

Cooling mode:

Air cooling

The dimensions:

400*95*370（mm ）

Installation dimensions

380 * 70 (mm) machine cabinet installed

Features:

Small volume, light weight, high efficiency, simple structure, easy operation, powerful, stable and reliable

The circuit USES modular design, convenient debugging and maintenance.

Unique perfect protection, make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English, making the problem clear and accurate

Remark:

Output current voltage can be customized

The factory default for analog interface

Troubleshooting tips

Analysis intelligent fault detection, fault alarm limit point, a parameter setting error, artificial operation error, the power of the internal factors multistage error sequence number.
