- Input voltage：380V
- Output power：5KW
- Output voltage(Max)：30KV
- Output current(Max)：1A
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|
The main technical parameters |
||
|
The product name |

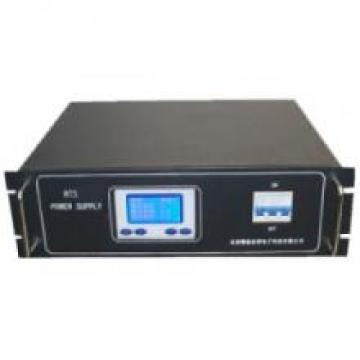

General high voltage power supply |
|
|
Product model |
WT5-30KV |
|
|
Product brand |
Yochain |
|
|
Power source type |
CNC intelligent power supply |
|
|
The input voltage: |
AC380Plus or minus10%V |
|
|
The output |
power: |
5KW |
|
current: |
0.16A~1A |
|
|
voltage: |
5KV~30KV |
|
|
waveform |
dc |
|
|
way |
Custom constant voltage, constant current and constant power |
|
|
Adjust the accuracy |
Or less1% |
|
|
The efficiency of |
p90% |
|
|
The power factor |
cosPhi or greater0.9 |
|
|
The power switch |
DB9Needle interface |
|
|
The control mode: |
Computer control panel buttons |
|
|
Analog signal control:TTLLevel, can control the work stop, the output voltage or output current and output power, external open circuit protection (generally for water protection) |
||
|
Digital interface control:485Communications.Can also be customized232interface |
||
|
Display mode: |
Liquid crystal display in both Chinese and English |
|
|
Insulation class |
Blevel |
|
|
Protection grade |
IP20 |
|
|
Protect the response time |
1uS |
|
|
The input |
Resistance of enclosure |
p20MOmega. |
|
The output |
||
|
Input pressure of enclosure |
2000V/1min |
|
|
Input to output pressure |
3500V/1min |
|
|
Using the environment |
Temperature: |
0~35℃ |
|
Humidity: |
Or less85% |
|
|
Cooling mode: |
Air cooling |
|
|
The dimensions: |
480 * 135 * 380（mm） |
|
|
Load characteristic |
Resistive load, capacitive load, negative resistance load, the nonlinear load, allow the load short circuit |
|
|
The characteristics of : |
Small volume, light weight, high efficiency, simple structure, easy operation, powerful, stable and reliable |
|
|
The circuit USES modular design, convenient debugging and maintenance. |
||
|
Unique perfect protection, make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English, making the problem clear and accurate |
||
|
Remark: |
The output power of subsection normal polarity and negative polarity |
|
|
The factory default interface for simulation, the negative voltage polarity |
||
|
Troubleshooting tips |
The intelligent fault detection analysis,Fault alarm limit point, parameter setting error,Artificial operation error,Power internal factors of multistage error sequence number. |
|
