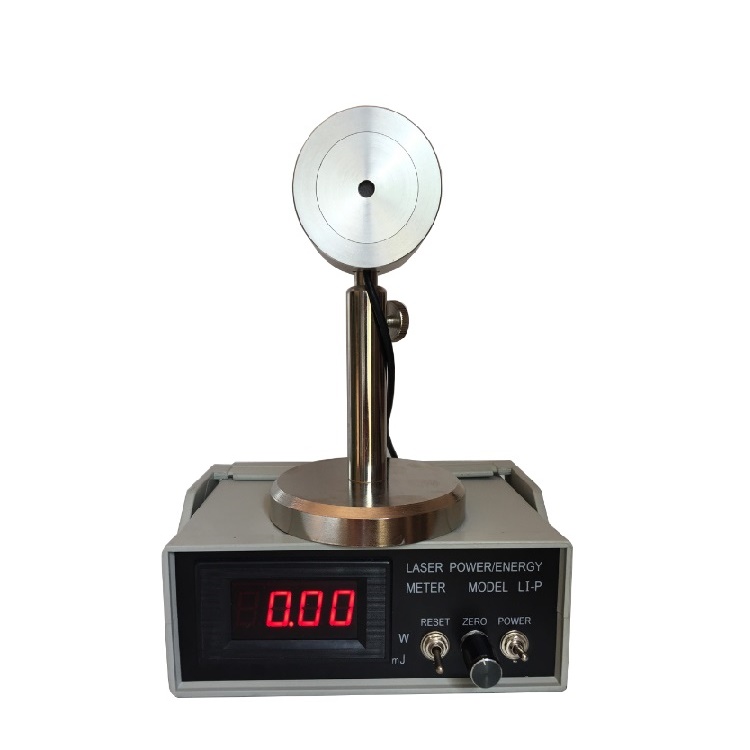

Feature:
1. Using the original patent technology.
2. Has a very high photon damage resistance, users don't need too much consider when using the probe surface is strong photon injury problems.
3. Suitable for high power density, high energy density and strong peak power density of photon energy test.
4. Adopted pyroelectric photoelectric conversion device has very fast response speed,
5. The function of peak value holding can make the device to maintain a single pulse energy when the repetition frequency (PRF) pulse less than 40Hz in the pulsed test.
6. Scope of the photon energy meter by the range of A, B, C three different models, customer can choose the suitabel model according to the energy output of the metering.
Parameter:
| Probe diameter | 20mm |
| Spectral range | 0.4~3um |
| Range | 2~200J |
| Max. IPL energy density | ≥1GW/cm2 |
| Max. IPL peak power density | ≥70J/cm2 |
| Display mode | 3-1/2 LED |
| Feature | reak-time response and holding function |
Feature:
| Display | Bipolar 3-1/2 digit display |
| Spectral range | 400nm~3um |
| Range | Type A: 200mJ, 2J, 20J |
| Type B: 2J, 20J, 200J | |
| Type C: 20mJ, 200mJ, 2000mJ | |
| Photosensitive surface size | Diameter 20mm |
| Pulsed width | <1mS |
| Retition frequency | <40Hz single pulsed light string |
| Max. IPL energy density | 70J/cm2 |
| Max. IPL peak power density | 1GW/cm2 |
| Uncertainty | 5% ± 1 |
| Voltage | AC 200V ±10%, 50Hz |
| Power consumption | 15W |
