- Input voltage：220V
- Output power：2KW
- Output voltage(Max)：5KV
- Output current(Max)：500mA
- Custom：Yes

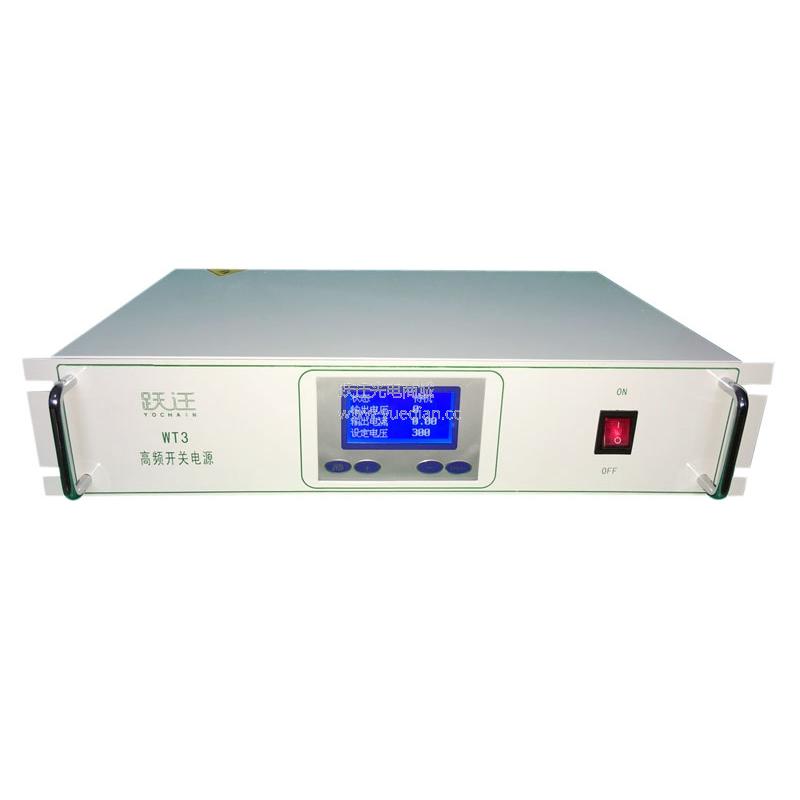

Product Name
Magnetron power supply
Items No.
WT3-MP-2000
Type
Magnetron power, magnetron drive, magnetron heating power, magnetron transformer
Appliction Tube No.
LG: LG2M278-04ARCM, LG2M278-24ARCM, CK-2121Continuous wave magnetron tube, etc.
Input Voltage
AC220V
Output Power
3000W
Output Voltage
5000V
Magnetron Current
725mA
Filament Voltage
3.4~4.7V
Filament Current
20A
Output DC High Voltage
450V-4500V
User adjust the current scope
70 mA --750 mA
Cooling mode
Air-cooling
Enviroment Temperature
-20℃-+55℃
Control Mode
0V-5V (MCS)
Output DC Current Temperature Drift
±2% 24h
HV Output Characteristics
High-voltage output allows continuous short circuit for many times, but then repeated start
Over-temperature Protection
Temperature switch tube, rectifier bridge >55℃
High pressure rise slowly
10mS
AC power restart time
20mS
Dimensions
480*95*370(mm)
Feature:
1) AC/DC conversion efficiency reached 90%.
2) the output can be directly to ground short circuit, the power will not damage
3) output power rating, power reserves 50%
4) the environment temperature of 55 ℃ can work continuously, the actual environment temperature can be set up.

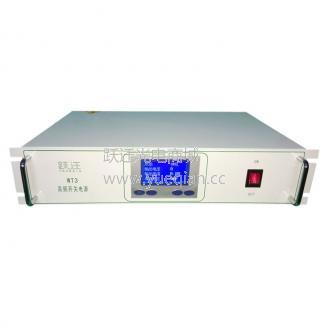

2000W 5000V industrial microwave magnetron power supply
