- Input voltage：220V
- Output power：1.5KW
- Output voltage(Max)：5KV
- Output current(Max)：500mA
- Custom：Yes

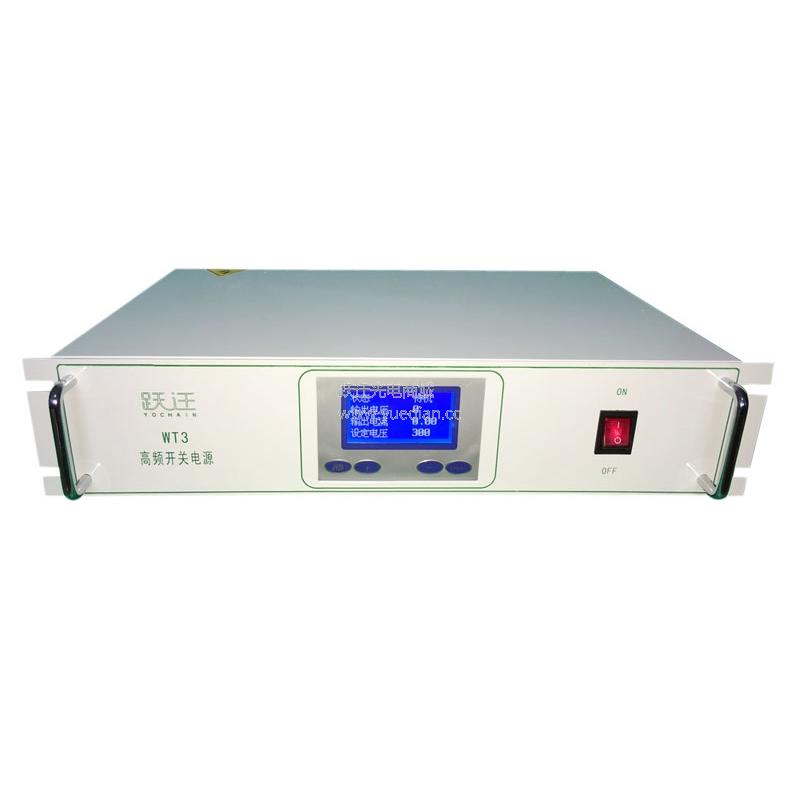

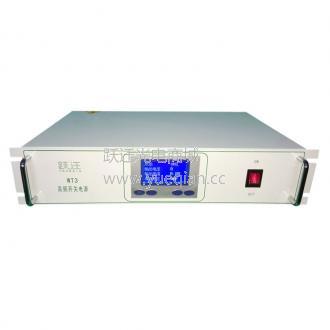

1500W microwave magnetron power supply for microwave
|
Product Name |
Magnetron power supply |
|
Items No. |
WT3-MP-1500 |
|
Type |
Magnetron power, magnetron drive, magnetron heating power, magnetron transformer |
|
Appliction Tube No. |
Magnetron WITOL 2M463G, WITOL 2M343G, etc |
|
Input Voltage |
AC220V |
|
Output Power |
3000W |
|
Output Voltage |
4400V |
|
Magnetron Current |
440mA |
|
Filament Voltage |
3.3V |
|
Filament Current |
10A |
|
Output DC High Voltage |
450V-4500V |
|
User adjust the current scope |
40 mA --440 mA |
|
Cooling mode |
Air-cooling |
|
Enviroment Temperature |
-20℃-+55℃ |
|
Control Mode |
0V-5V (MCS) |
|
Output DC Current Temperature Drift |
±2% 24h |
|
HV Output Characteristics |
High-voltage output allows continuous short circuit for many times, but then repeated start |
|
Over-temperature Protection |
Temperature switch tube, rectifier bridge >55℃ |
|
High pressure rise slowly |
10mS |
|
AC power restart time |
20mS |
|
Dimensions |
480*95*370(mm) |
Feature:
- AC/DC conversion efficiency reached 90%.
- the output can be directly to ground short circuit, the power will not damage
- output power rating, power reserves 50%
- the environment temperature of 55 ℃ can work continuously, the actual environment temperature can be set up
