- Input voltage：220V/110V
- Output power：50W
- Output voltage(Max)：15KV
- Output current(Max)：10mA
- Custom：Yes
Features:
1. Universal AC input / Voltage range( 176VAC to 264VAC, 90VAC~130VAC is optional)
2.Protections: Overload / Over voltage /short circuit
4.Small size and high efficiency
5.Full load aging test and low output ripple
6.Output powe: 5W/10W/20W/50W
7.Application: Air cleaners/purifier, Air purification, fume purification, flue gas denitration, etc.,etc.
8.We can customize it for you according to your requirements.

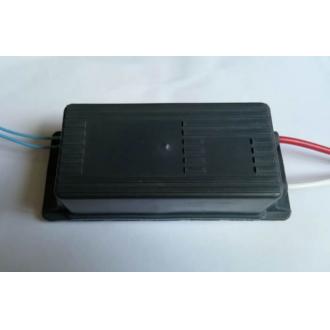

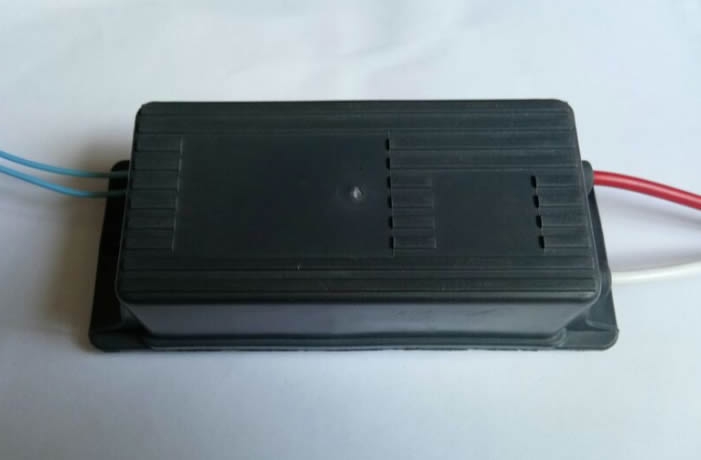

WG4-5/10/20/50W One-output Power Supply (Dual-output is option)
Product Features
1. Regulation output current by the potentiometer
2. Stable output voltage
3.Compliance to worldwide safety regulations for lighting
Model
WG4-5
WG4-10
WG4-20
WG4-50
Input Voltage
176~264VAC
Input Frequency
47~63Hz
Output Power
5W
10W
20W
50W
Output Voltage
DC 3~10mA(max)
Output Current
DC 5-15KV(max)
Response Time
≤1mS
Interface Control
TTL interface, work operation, voltage adjustable, work indication, fault indication
Power Regulation
Power Switch
No need control, or you can use a external swith to control
Temperature
-10~+40℃
Humidity
≤85%
Cooling Mode
Air-cooling
Dimensions
146*60*40(mm)
Application
Air purification, fume purification, flue gas denitration, etc.
