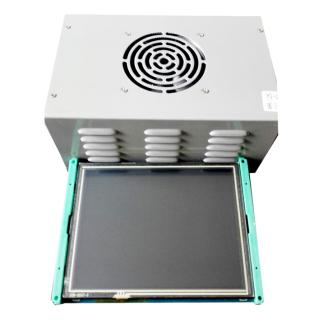

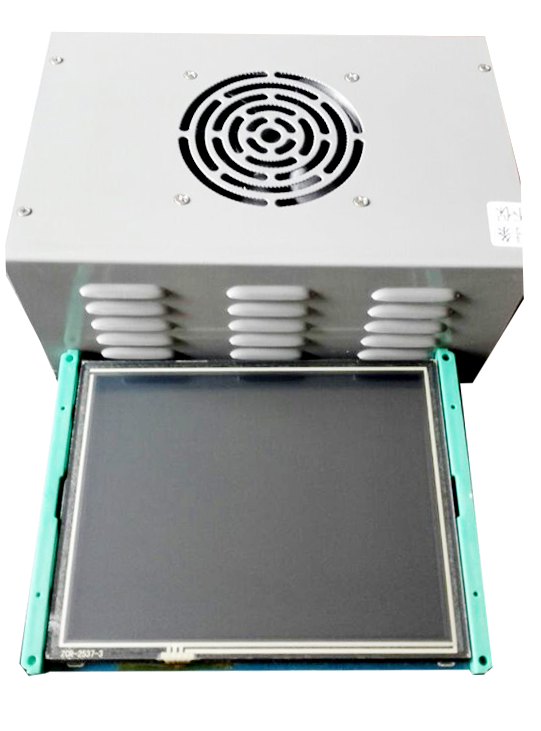

WK5C-N5 Power system include: WK5C controller, WN5 600W IPL power supply
WK5C controller parameter:
|
Type |
Touchscreen controller |
|
No. |
WK5C |
|
Screen operation mode |
Press key |
|
Material |
LCD screen |
|
External dimension |
184*137mm, 164*116mm |
|
Install dimension |
173*125mm |
|
Display window |
114*64mm |
|
Display mode |
Background light |
|
Display bitmap |
240*128 |
|
Color |
64000 |
|
Language pattern |
45mm |
|
Output power adjustment |
Level 50 |
|
Basic function |
Water protection, water quality detection, temperature detection, temperature protection |
WN5 IPL power supply parameter:
|
Name |
IPL laser power supply |
|
|
No. |
WN5 600W |
|
|
Brand |
Yochain |
|
|
Type |
High power pulse |
|
|
Input voltage |
AC 220V±20% |
AC 110V±10% (customazation) |
|
Input frequency |
50Hz, 60Hz |
50Hz, 60Hz |
|
Input current |
5A |
10A |
|
Input power |
700W |
|
|
Output power |
600W |
|
|
Output current |
Peak 400A |
|
|
Output voltage |
Peak 400V |
|
|
Output frequency |
1-2-3 time/second |
|
|
Reservoir capacitance |
10000uf-30000uf/450V |
|
|
Work current |
Average 4A, Peak 20A |
|
|
Cooling mode |
Air cooling + cooling fin |
|
|
External dimension |
230mm*165mm*116mm |
|
|
Install dimension |
235mm*102mm |
|
|
Controller match |
WK5C, WK4, WK8 controller |
|
|
Environment temperature |
20 to 30℃ |
|
|
Humidity |
≤80% |
|
