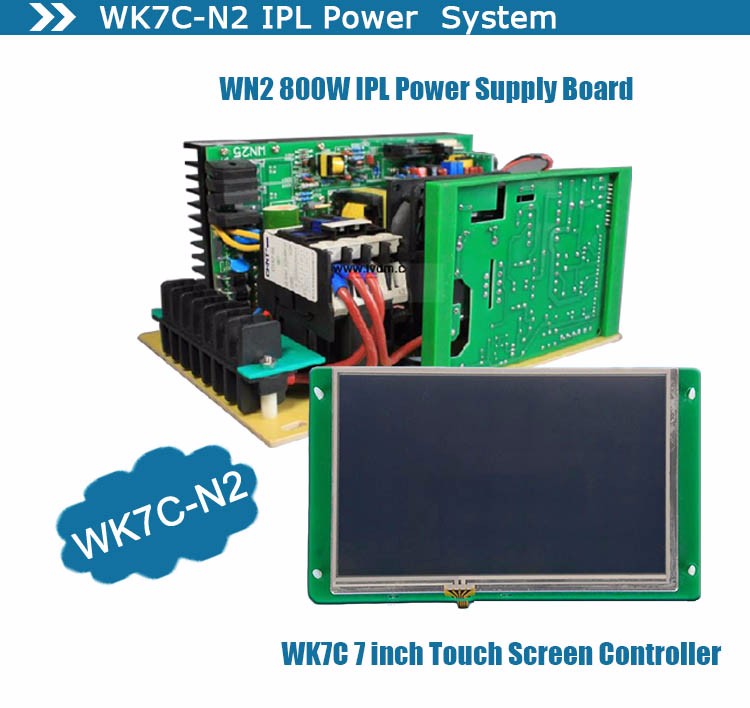

WK7C-N2 Power system include: WK7C controller, WN2 800W IPL power supply
WK7C controller parameter:
|
Name |
Touchscreen controller |
|
No. |
WK7C |
|
Screen operation mode |
Touch |
|
Material |
LCD screen |
|
Dimension |
190*105*30mm |
|
Install dimension |
154.1*85.9mm |
|
Display window |
181*59mm |
|
Display mode |
True color |
|
Language pattern |
Chinese, English, Other custom |
|
Basic function |
Water protection, water quality detection, temperature detection, temperature protection |
WN2 IPL 800W power supply parameter:
|
Name |
IPL power supply |
|
|
No. |
WN2 800W |
|
|
Type |
High power pulse |
|
|
Input voltage |
AC 220V±20% |
AC 110V±10% (customazation) |
|
Input frequency |
50Hz, 60Hz |
50Hz, 60Hz |
|
Input current |
5A |
10A |
|
Input power |
1000W |
|
|
Output power |
800W |
|
|
Output voltage |
Up to 430V | |
|
Reservoir capacitance |
10000uf-30000uf/450V |
|
|
Work current |
Average 4A, 5A up to 20A |
|
|
External dimension |
230mm*165mm*116mm |
|
WN2 800W IPL POWER SUPPLY:
