Product Description
IPL equipment parts portable source system
Name: IPL Power System
No.: WK5B-N5
Include: WK5B LCD display controller, WN5 600W IPL power supply
Application: IPL beauty equipment

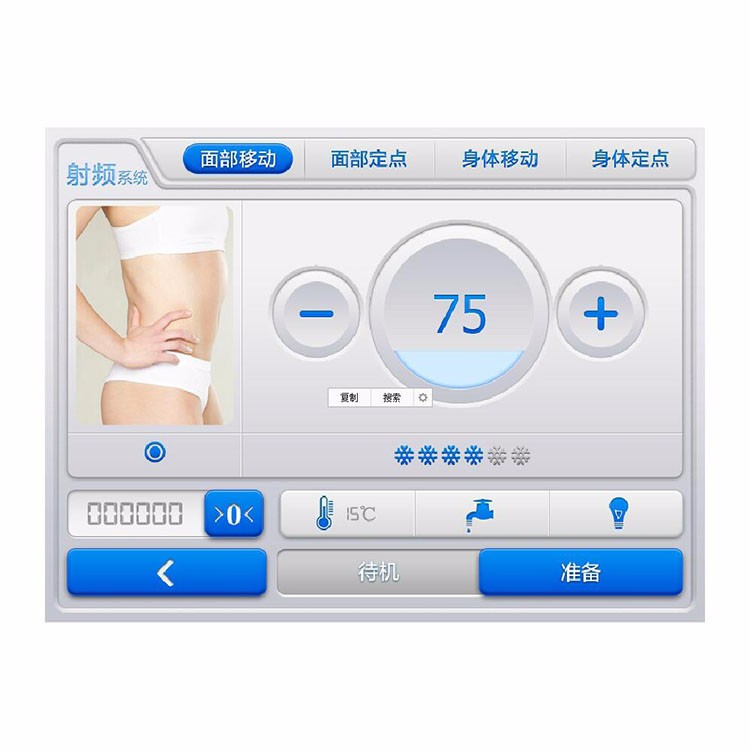

WK5B LCD touch screen controller board parameter:
|
Name
|
Touchscreen controller
|
|
No.
|
WK5B
|
|
Screen operation mode
|
Touch
|
|
Material
|
LCD screen
|
|
Panel size
|
228mm*168mm (9.0in*6.7in*1.8in)
|
|
Install dimension
|
218mm*156mm (8.6in*6.1in)
|
|
Display window
|
172mm*129mm (6.8in*5.1in)
|
|
Display bitmap
|
640point*480point
|
|
Display mode
|
True color
|
|
Language pattern
|
Simplified Chinese, traditional Chinese, English, Other custom
|
|
|
Total points record
|
|
Wate protectionr, over temperature protection
|
|
|
10 options of background images
|
|
|
Feature
|
With a 3 in 1 system selection background images. Can simultaneously control three power supply as IPL, RF, tattoo removal machine power supply
|
|
Power supply match
|
WN2 IPL 2 in 1 power supply, WS2, E-light power supply, WJ5 power supply
|
|
Weight
|
0.66kg
|

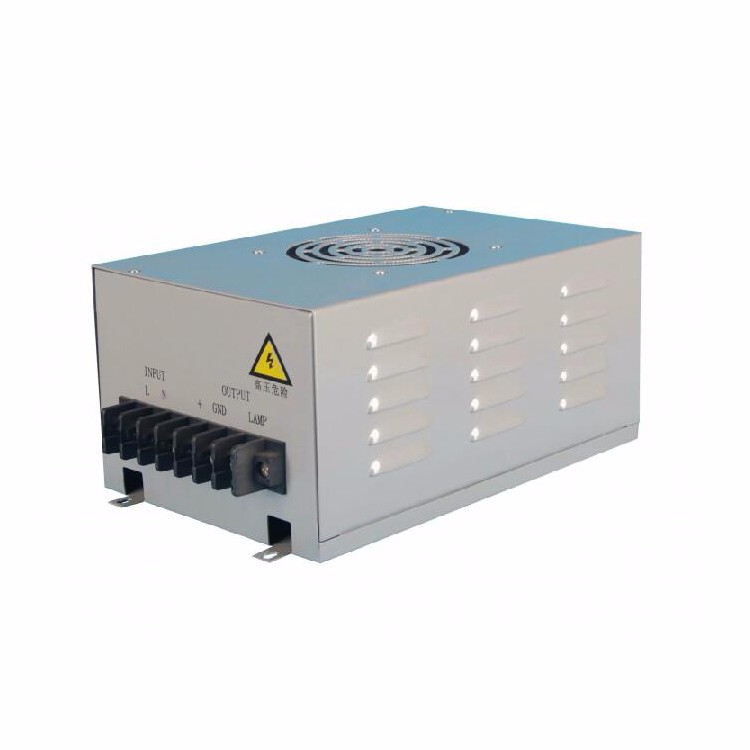

WN5 IPL power supply parameter:
|
Name
|
IPL power supply
|
|
No.
|
WN5
|
|
Input voltage
|
220V±20%/50Hz, 110V±10%/60Hz
|
|
Input power
|
700W
|
|
Output power
|
600W
|
|
Output current
|
Peak 400A
|
|
Output voltage
|
Peak 400V
|
|
Output frenquency
|
1-2-3/s
|
|
Stored energy electric capacity
|
10000~30000μF/450V
|
|
Max work curren
|
Average 4A, peak 20A
|
|
External dimension
|
230mm*165mm*116mm (9.1in*6.5in*4.7in)
|
|
Install dimension
|
235mm*102mm (9.3in*4.0in)
|
|
Cooling mode
|
Air cooling+cooling fin
|
|
Controller match
|
WK5B, WK4, WK8
|
