WK7C-EC power system
* WK7C Controller
* WS2-5MX 5MHZ 50W RF power supply,
* WN2 800W IPL power supply
1. WK7C Touchscreen Controller
Dimension: 190*115*30(mm)
Install Size: 181*59(mm)
Display Window: 154.1×85.9(mm)
Display Mode: truecolor
Language Switch: Chinese, English, other can be customized
Feature: water protection, water quality detection, temperature detection, temperature protection

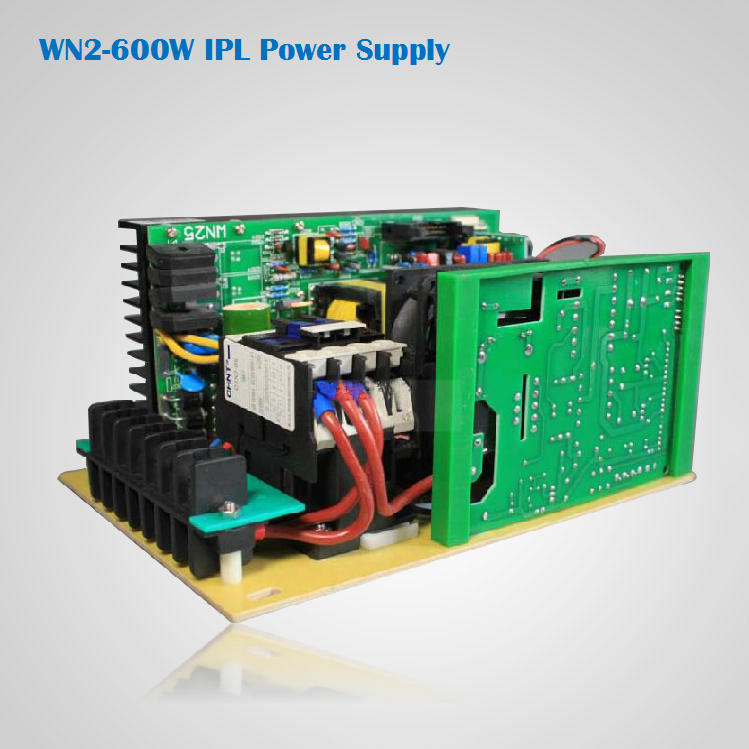

2. WN2-600W IPL Power Supply
Input: 220V±20%/50Hz, 60Hz; 110V±10%/, 60Hz
Input Power: 700W
Output Power: 600W
Reservoir capacitance: 30000μF/450V
Work Current: average 4A, peak 20A
Output Current: peak 200~400A
Output Voltage: peak 430V
Dimension: 230*165*116(mm)

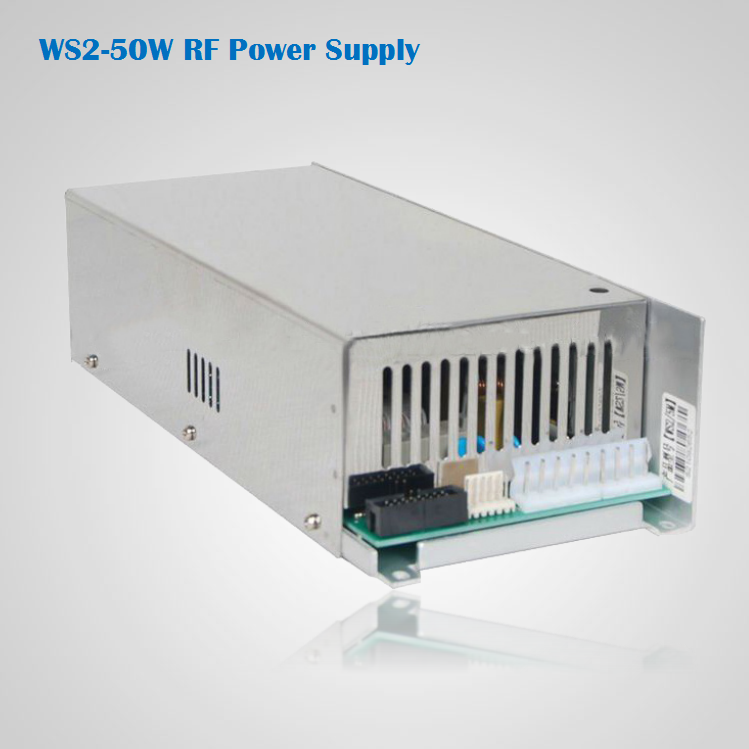

3. WS2-50W RF Power Supply
Input: AC 220V; AC 110V
Output Power: 50W(adjustable)
Work Frequency: 5MHz
Work Current: average 1A, peak 5A
Dimension: 262*103*65(mm)
Install Size: 153*87(mm)
