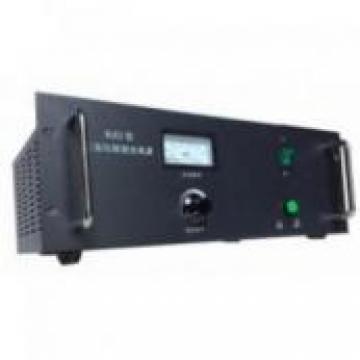

WJE2D-40KV Negative output co2 axial flow laser cutting power supply

• Input voltage：220V/110V
• Output voltage(Max)：40KV
• Output current(Max)：70mA

PARAMETER:

• Number: WJE2D
• Brand: Yochain
• Input Voltage: AC220±20%V, AC110±15%V
• Output Current: 70mA
• Output Voltage: DC -40KV
• Response Speed: ≤1mS
• Optocoupler Interface Controller: DC(5±2V) / bright dipping
• Laser Power Adjustable: 1. adjust the output current by potentiometer, 2. controlled by PWM (TTL level)
• Laser Switch: manual operation or optocoupler interface
• Work Temperature: -10~+40℃
• Environment Humidity: ≤85%
• Cooling Mode: air cooling
• Dimension: L*W*H=395*325*160(mm)
• Install SIze: 380*70(mm)
• Application: Laser cutting, engraving, welding, marking, etc.
