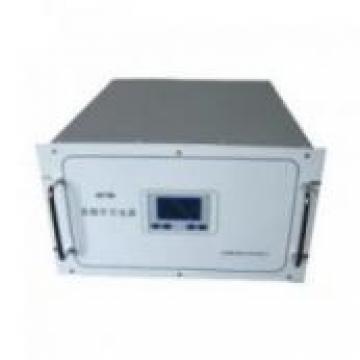

WT40-40KW High power DC switching power supply

Price: $10000.0 $10000.0
WT40-40KW High power DC switching power supply
Rating:
100 %
0 comments
  • Input voltage:380V
  • Output power:40KW
  • Output voltage(Max):50KV
  • Output current(Max):2000A
  • Adjustable:Yes
  • Custom:Yes
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction

Specification:

Product Name

DC magnetron sputtering plating power supply

Items No.

WT40-DC-40KW

Type

CNC intelligence power supply

Input Voltage

AC380V±10%

Output Power

40KW

Output Current

0.8~2000A

Output Voltage

20V~50KV

Output Wave

Custom constant voltage, constant current, constant power

Waveform

mono-polar DC

Regulation Precision

≤1%

Efficiency

≥90%

Power Factor

cosΦ≥0.9

Display Mode

Chinese-English LCD display

Display Content

Working state, output voltage, output current, set value

Output Protection

Output overvoltage, output overcurrent and output offset

Input Protection

Output overvoltage, Output undervoltage, input overcurrent, open phase

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Input Shell Resistance

≥20MΩ

Output Shell Resistance

≥20MΩ

Input Withstand Voltage

2000V/1min

Output Withstand Voltage

3500V/1min

Temperature

0~35℃

Humidity

≤80%

Cooling mode

Water-cooling

Dimensions

480*263*550(mm)

Install Size

460*70(mm) (cabinet)

Note

Factory default analog interface
