- Input voltage：220V/110V
- Output power：250W
- Output voltage(Max)：900V
- Output current(Max)：800A

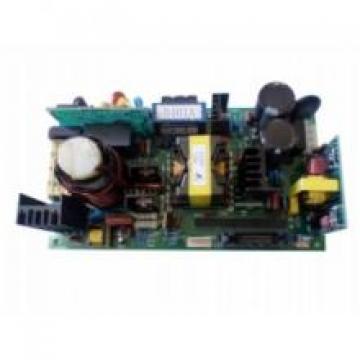

ND: YAG Laser power supply portable 250W for beauty machine
|
Name |
ND: YAG laser power supply |
|
No. |
WJ6-250W |
|
Brand |
Yochain |
|
Type |
ND: YAG |
|
Laser match |
808nm semiconductor laser device |
|
Input voltage |
220V±20%/50Hz,60Hz;110V±10%/50Hz,60Hz |
|
Input power |
300W |
|
Output power |
250W |
|
Reservoir capacitance |
100μF/1400V |
|
Work current |
Average 1A, Peak 5A |
|
Output current |
Peak 800A |
|
Output voltage |
700V~900V, Reservoir capacitance peak 650~1000V |
|
Output voltage regulation |
Level 20,linear regulationper 10V |
|
Output frequency |
1,2,3,4,5time/second |
|
Max.total account |
999999 pulsed |
|
Display bitmap |
128×64 |
|
Environment temperature |
15℃~25℃ |
|
Humidity |
70% |
|
Cooling mode |
Air cooling |
|
Power supply |
External dimension |
176mm*98mm*52mm |
|
Install dimension |
147mm*89mm |
|
|
PC board |
External dimension |
86.5mm*76.5mmm*28mm |
|
Install dimension |
68mm*64mm |
|
|
LCD |
External dimension |
76mm×58mm×16mm |
|
Install dimension |
67mm×64.5mm |
|
|
Display window |
61.5mm×44mm |
|
|
Display thickness |
46mm |
|
