- Input voltage：380V
- Output power：20KW
- Output voltage(Max)：10KV
- Output current(Max)：1000A
- Adjustable：Yes
- Custom：Yes
Specification:
|
Items Name |

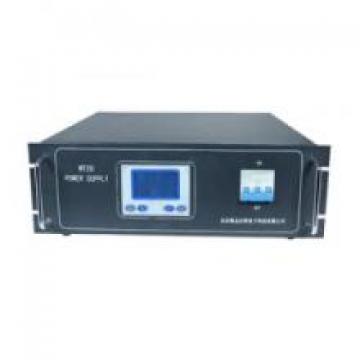

400A/20KW high current power supply |
|
|
Items No. |
WT20-20KW |
|
|
Type |
CNC intelligence power supply |
|
|
Input voltage |
AC380V±10%, three phase four wire |
|
|
Output |
power |
20KW |
|
|
current |
0~400A |
|
|
voltage |
0~1KV |
|
|
mode |
Custom constant voltage, constant current, constant power |
|
CV mode |
Voltage regulation≤0.05% |
|
|
|
Load regulation≤0.05% |
|
|
|
Ripple effective value≤0.05% |
|
|
CC mode |
Current regulation≤0.1% |
|
|
|
Load regulation≤0.1% |
|
|
|
Ripple effective value≤0.1% |
|
|
Accuracy |
1% |
|
|
Power factor |
cosΦ≥0.9 |
|
|
Leakage current |
5mA |
|
|
Power switching |
DB9 pin connector |
|
|
Display mode |
Chinese, English LCD display |
|
|
Work noise |
30db |
|
|
Insulation grade |
B |
|
|
Protection level |
IP20 |
|
|
Protection response time |
1uS |
|
|
Input Shell Resistance |
≥20MΩ |
|
|
Output Shell Resistance |
≥20MΩ |
|
|
Input Withstand Voltage |
2000V/1min |
|
|
Output Withstand Voltage |
3500V/1min |
|
|
Temperature |
-35~ +40℃ |
|
|
Humidity |
≤90% |
|
|
Cooling mode |
air-cooling |
|
|
Dimensions |
480*263*550(mm) |
|
|
Install size |
460*146mm(600*600mm Cabinet mounting) |
|
|
Application |
Resistance heating, plasma source, electrolysis, electroplating, etc.. |
|
