Parameter:

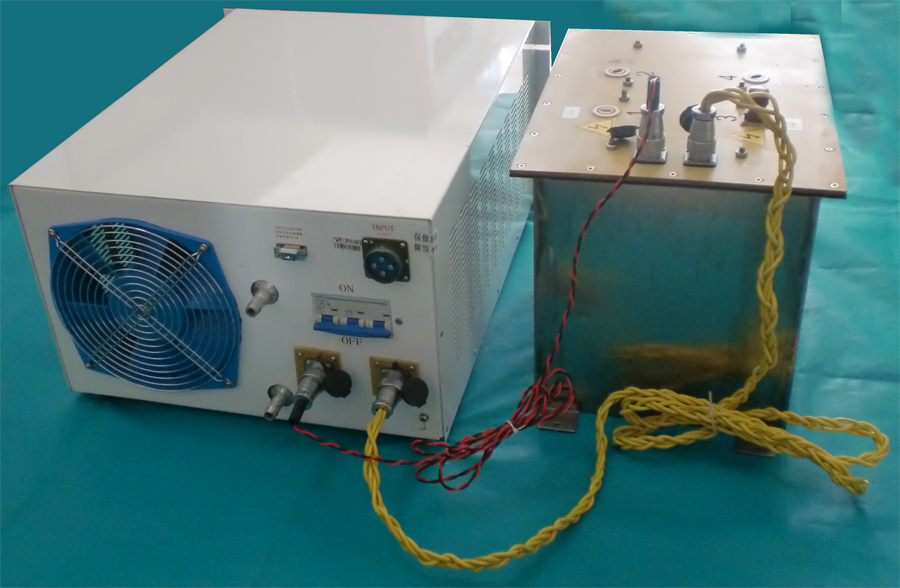

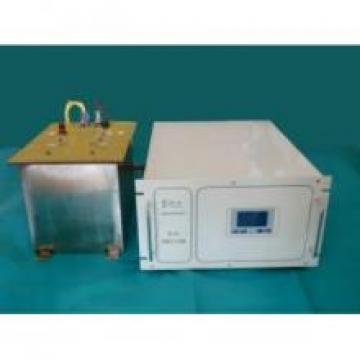

- Name: high voltage pwoer supply
- Number: WT40-HV-30KW/30KV/1A
- Input Voltage: AC 380V±10%
- Output Voltage: 30KV
- Output Current: 1A
- Output Power: 30KW
- Output Waveform: DC
- Work Temperature: 0~35℃
- Humidity: ≤85%
- Cooling Mode: water cooling
- Dimension: 480*263*550(mm)
- Oil box Dimension: 450*400*400(mm)
- Control Mode: PC panel press buttons
- Interface Control: TTL level, work, stop, adjust output voltage
- Analog signal control: TTL level, work, stop, output voltage, output current, output power, open circuit protection (generally used for water flow protection)
- Steady voltage, steady current, steady power, all adaptive, automatic switching
- Digital Interface: RS485, RS232(options)
- Display Mode: English/Chinese LCD display screen, various parameters and status.
- External Control Interface Output: voltage signal
- Feature: short circuit protection, water flow protection
- Efficiency: ≥90%
