200W YAG脉冲激光电源 WK7-J3包含：按键控制器WK7+200W YAG脉冲激光电源 WJ3
Laser hair tattoo nd yag laser parts accessory power supply + screen control board (WK7-J3)

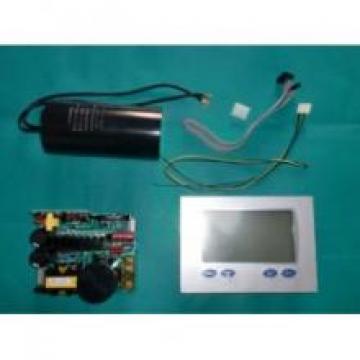

WK7 -J3 include:
* 4.3 inch screen controller (WK7)
* 200W ng yag laser power supply (WJ3)
* 100UF/1400V/50HZ Capacitance
* Some cable
Used for ng yag laser
WK7 4.3 inch Controller
1. Apparent size: 163.5*116mm
2. Installation size: 152*104mm
3. Display mode: three backgrounds(blue, yellowish green, light blue)
4. 240-128 liquid crystal display
5. Language mode: chinese or english
WJ3 200W ND YAG Laser power supply
· Demision: 122mm*100mm*58mm
· Installation size: 116mm*94mm
· Voltage: AC220V±20%/AC110V±10%
· Output voltage: up to 300v, energy-storage capacitor up to 650v-1000v
· Input rate:300w
·Output rage:200w
· Woking current:1A,Peak Value5A
·Output current: 1A,Peak Value 800A
·Output frequency: 1 2 3 4 5 times/sec
·Woking temperature: 0-50°C
·Working humidity:≤90%
Product Description
WK7 controller parameter:
|
Type
|
Press key screen controller
|
|
No.
|
WK7
|
|
Screen operation mode
|
Press key button
|
|
Material
|
LCD screen
|
|
External dimension
|
163.5mm*116mm
|
|
Install dimension
|
152mm*104mm
|
|
Display window
|
114mm*64mm
|
|
Display mode
|
Blue, Yellow green, light blue background light
|
|
Display bitmap
|
240-128p LCD display
|
|
Output voltage adjustment
|
Level 20
|
|
Environment temperature
|
-10~35℃
|
|
Humidity
|
≤85%
|
|
Weight
|
0.29kg
|
|
Power supply match
|
Laser power supply
|
|
Work switch
|
Handle or pedal
|
|
Basic function
|
Software adjust/frenquency adjust/water flow/water quality/temperature protection, etc.
|
WJ3 ND YAG laser power supply parameter:
|
Name
|
ND YAG power supply
|
|
No.
|
WJ3
|
|
Laser type
|
ND:YAG
|
|
Input voltage
|
220V±20%/50Hz, 60Hz; 110V±10%/50Hz, 60Hz
|
|
Input power
|
300W
|
|
Output power
|
200W
|
|
Output frequency
|
1-5Hz
|
|
Stored energy electric capacity
|
100μF/1400V
|
|
Max work curren
|
Average 1A, peak 5A
|
|
Output voltage
|
Stored energy electric capacity 650~1000V
|
|
External dimension
|
122mm*100mm*60mm
|
|
Install dimension
|
116mm*94mm
|
|
Work humidity
|
90%
|
