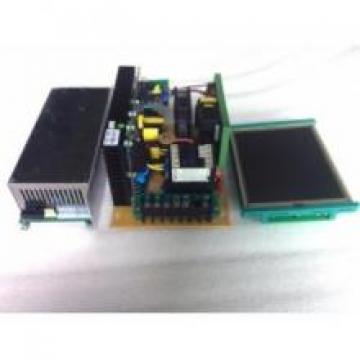

WK5C-EC Power system:
* WN5C controller with LCD display
* WN2 power supply: 800W IPL
* WS2 power supply: 50W RF
WK5C controller parameter:
Item No.: WK5C
Size: 8 inch
Dimension: 202*149*47mm
Install size: 192.5*142mm 192.5*88mm
Display mode: truecolor
Language: Simple Chinese, Traditional Chinese, English, other customize
Function: Software voltage regulation, frequency regulation, water protection, water quality detection, temperature detection, work points
WN2 IPL 800W power supply parameter:
|
Name |
IPL power supply |
|
|
No. |
WN2 800W |
|
|
Type |
High power pulse |
|
|
Input voltage |
AC 220V±20% |
AC 110V±10% (customazation) |
|
Input frequency |
50Hz, 60Hz |
50Hz, 60Hz |
|
Input current |
5A |
10A |
|
Input power |
1000W |
|
|
Output power |
800W |
|
|
Output voltage |
Up to 430V | |
|
Reservoir capacitance |
10000uf-30000uf/450V |
|
|
Work current |
Average 4A, 5A up to 20A |
|
|
External dimension |
230mm*165mm*116mm |
|
WS2 50W RF power supply parameter:
|
Name |
RF power supply |
|
No. |
WS2-5MX |
|
Type |
RF |
|
Max. output power |
50W (adjustable) |
|
Work frequency |
5MHz |
|
Input voltage |
AC 220V±20% ; AC110V±10% (optional) |
|
External dimension |
262mm*103mm*65mm |
|
Install dimension |
153mm*87mm |
|
Work Temperature |
-10℃--40℃ |
|
Humidity |
≤90% |
|
Weight |
0.94kg |
|
Controller |
A.Use our company's controller |
|
B.Use external device to control through data interface |
|
|
C. Use pedals switching and potentiometer for power supply own's controller to control |
