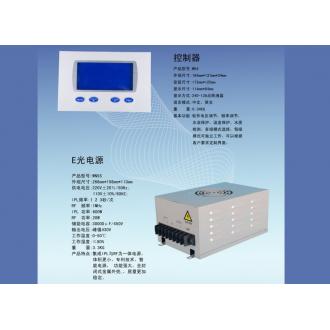

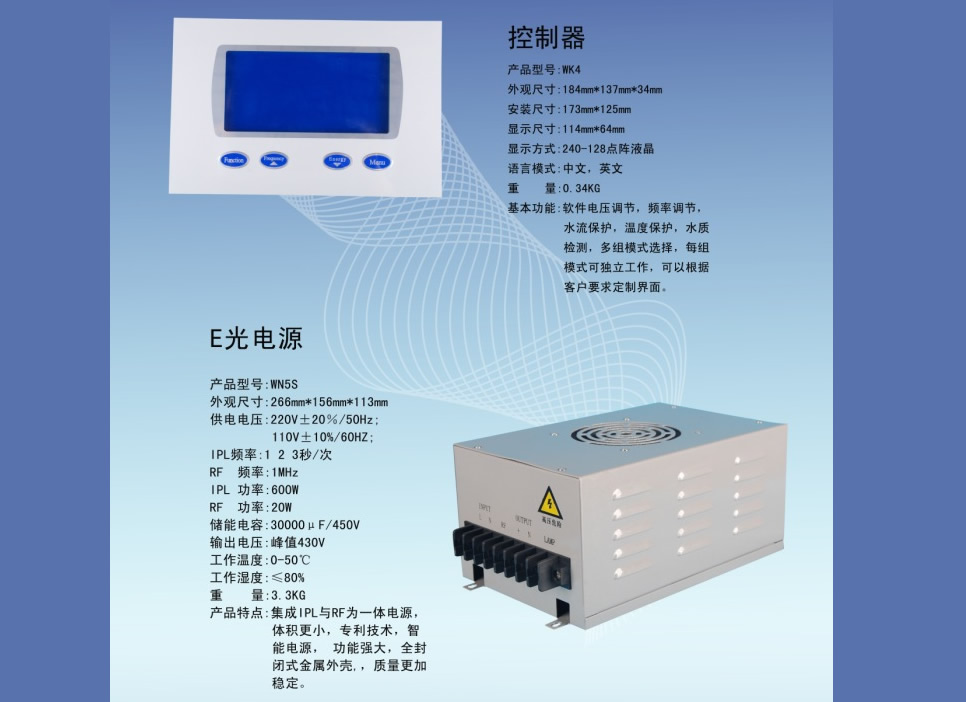

WK4-N5S Elight Power System for Beauty Equipment
Name: Elight Power System
No.: WK4-N5S
Include: WK4 LCD display controller, WN5S 600W IPL power supply
Application: E-light beauty equipment
WK4 LCD Press key controller board details:
|
Name
|
Button controller
|
|
No.
|
WK4
|
|
Screen operation mode
|
Press Key
|
|
Material
|
LCD screen
|
|
Panel size
|
184mm*137mm*34mm
|
|
Install dimension
|
173mm*125mm
|
|
Display size
|
114mm*64mm
|
|
Display bitmap
|
240*128 lattice liquid crystal
|
|
Language pattern
|
Chinese,English
|
|
Weight
|
0.34KG
|
|
Basic functions
|
voltage and frequency regulated by software; Water flow protection, temperature protection and water quality test; Modes to be choosed,Every mode could work seperately. Customize interface
|
WN5S E-light power supply parameter:
|
Name
|
WN5S E-light power supply
|
|
No.
|
WN5S
|
|
Type
|
RF+IPL
|
|
Input voltage
|
220V±20%/50Hz, 60Hz; 110V±20%/50Hz,60Hz
|
|
Input power
|
700W
|
|
Output power
|
IPL: 600W + RF: 50W
|
|
Reservoir capacitance
|
30000μF/450V
|
|
Max. work current
|
Average 4A, Peak 20A
|
|
Output current
|
Peak 200A~400A
|
|
Output voltage
|
Peak 430V, reservoir capacitance peak voltage
|
|
External dimension
|
230mm*165mm*120mm
|
|
Cooling mode
|
Air cooling+cooling fin
|
|
Controller match
|
WK5C2, WK10C
|
|
Custom
|
DC 0-1000V
|
