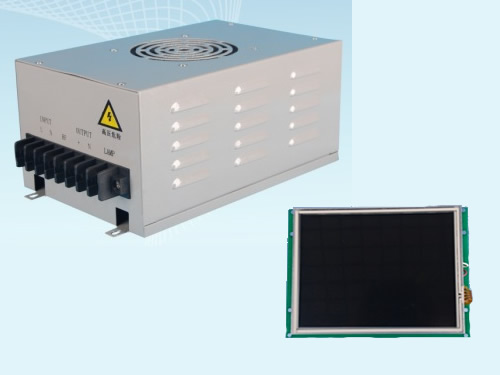

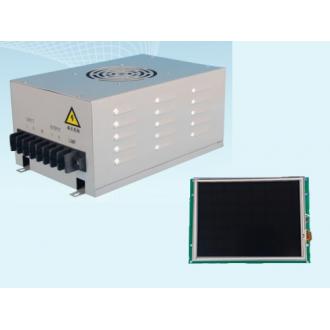

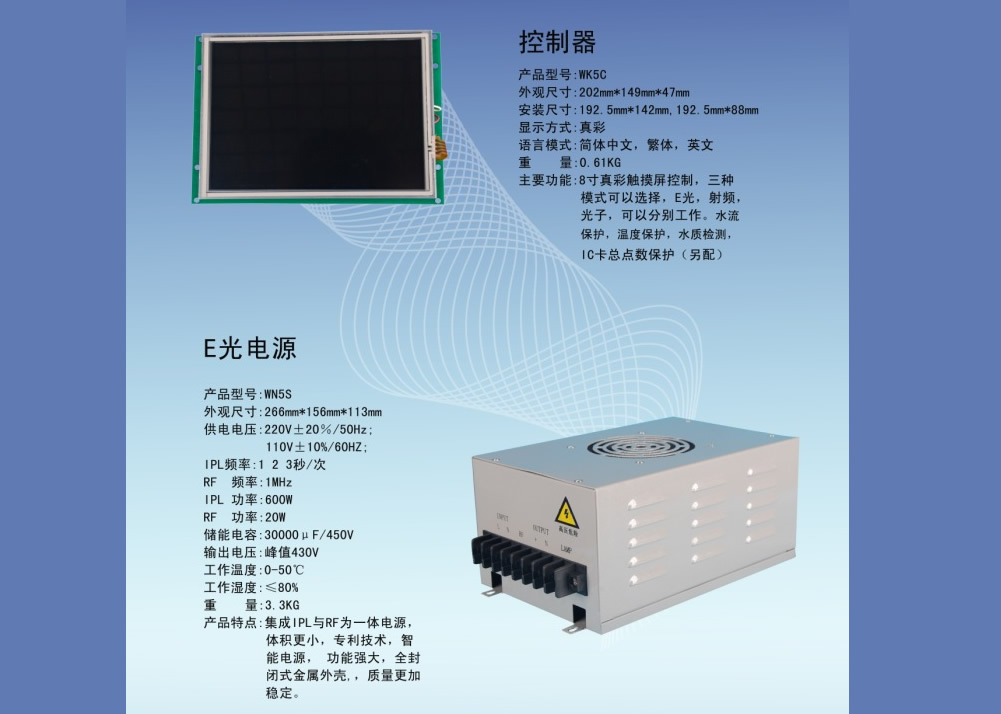

WK5C-N5S Power system include: WK5C controller, WN5S Elight power supply
1. WK5C Touchscreen Controller
-
Dimension: 202*149mm*47mm
-
Install Size: 192.5*142mm, 192.5mm*88mm
-
Display Mode: 8 inch truecolor
-
Display Dot Matrix: 480*272
-
Language Switch: Chinese, English, other can be customized
2. WN5S-Elight(ipl+rf) power supply
-
Name: E-light(RF IPL) power supply
-
No.: WN5S
-
Type: RF+IPL
-
Input Power: 700W
-
IPL Power: 600W
-
RF Power: 50W
-
Reservoir Capacitance: 30000μF/450V
-
Work Current : average 4A, peak 20A
-
Output Current: peak 200A~400A
-
Output Voltage: peak 430V
-
Dimension: 230*165*120(mm)
-
Cooling Mode: Air cooling+cooling fin
