IPL power system WK4-N2-Power system

Add to cart

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

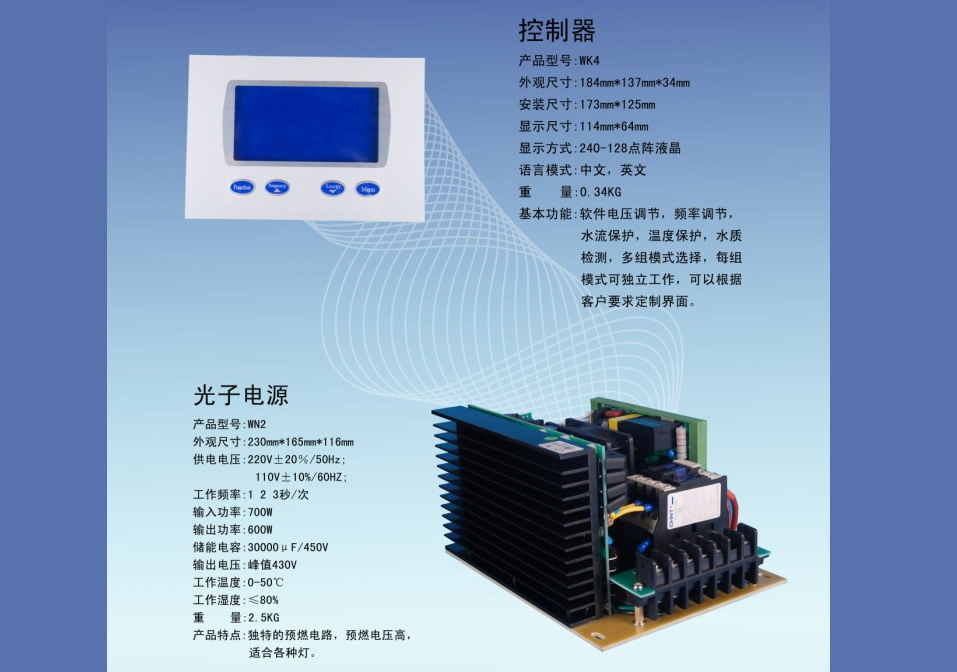

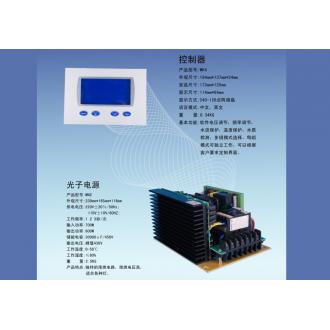

WK4-N2 IPL Power system include: WN2 800W IPL power supply, WK4 LCD controller

WN2 IPL power supply parameter:

Name

IPL power supply

No.

WN2

Input voltage

220V±20%/50Hz, 110V±10%/60Hz

Input power

900W

Output power

800W

Stored energy electric capacity

10000~30000μF/450V

Max work curren

Average 4A, peak 20A

Output current

Peak 200A~400A

Output voltage

Peak 430V

External dimension

230mm*165mm*116mm (9.1in*6.5in*4.7in)

WK4 LCD controller parameter:

Type press key

External Size 184*137mm 163.5*116mm

Install Size
173*125mm 152*104mm

Display Size 114*64mm

Display Mode blue background light

Language English-Chinese switching

Display Bitmap 240*128

Control Display Thickness 45mm

Output Voltage Adjustabel
50
