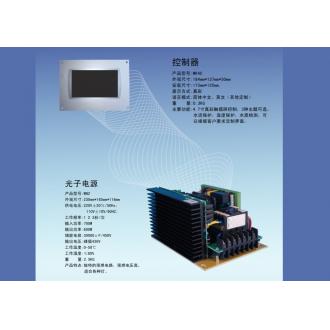

WK4C-N2 IPL Power System for Beauty Equipment

Name: IPL Power System

No.: WK4C-N2

Include: WK4C LCD display controller, WN2 800W IPL power supply
Application: IPL beauty equipment

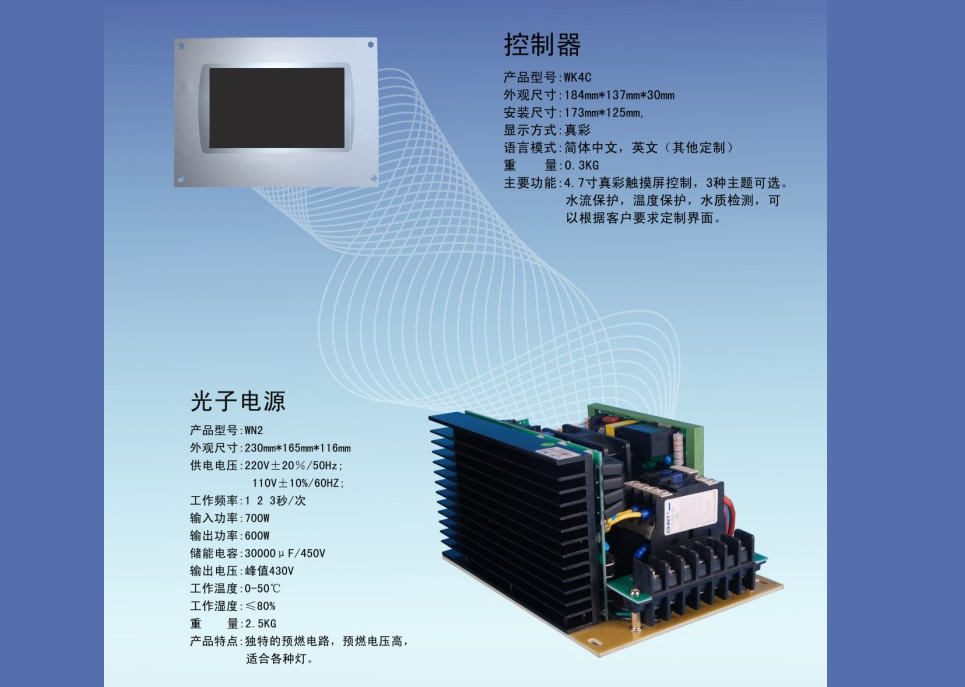

WK4C LCD touch screen controller board parameter:

Name

Touchscreen controller

No.

WK4C

Screen operation mode

Touch

Material

LCD screen

Panel size

180mm141mm22mm

Install dimension

181mm59.5mm

Display mode

4.7in truecolor

Display bitmap

480point272point

Color

64000

Language pattern

Simplified Chinese, Traditional Chinese, English, Other custom

Output power adjustment

Level 50

Basic function

Water protection, water quality detection, temperature detection, temperature protection

WN2 IPL power supply parameter:

Name

IPL power supply

No.

WN2

Input voltage

220V±20%/50Hz, 110V±10%/60Hz

Input power

900W

Output power

800W

Stored energy electric capacity

10000~30000μF/450V

Max work curren

Average 4A, peak 20A

Output current

Peak 200A~400A

Output voltage

Peak 430V

External dimension

230mm165mm116mm

Name	Touchscreen controller
No.	WK4C
Screen operation mode	Touch
Material	LCD screen
Panel size	180mm141mm22mm
Install dimension	181mm*59.5mm
Display mode	4.7in truecolor
Display bitmap	480point*272point
Color	64000
Language pattern	Simplified Chinese, Traditional Chinese, English, Other custom
Output power adjustment	Level 50
Basic function	Water protection, water quality detection, temperature detection, temperature protection

Name	IPL power supply
No.	WN2
Input voltage	220V±20%/50Hz, 110V±10%/60Hz
Input power	900W
Output power	800W
Stored energy electric capacity	10000~30000μF/450V
Max work curren	Average 4A, peak 20A
Output current	Peak 200A~400A
Output voltage	Peak 430V
External dimension	230mm165mm116mm
