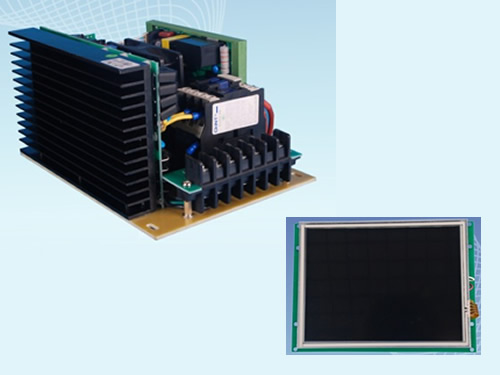

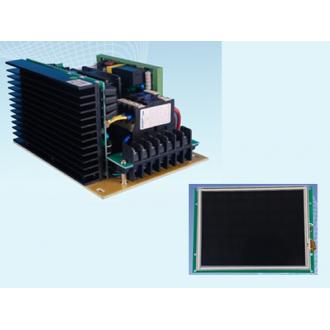

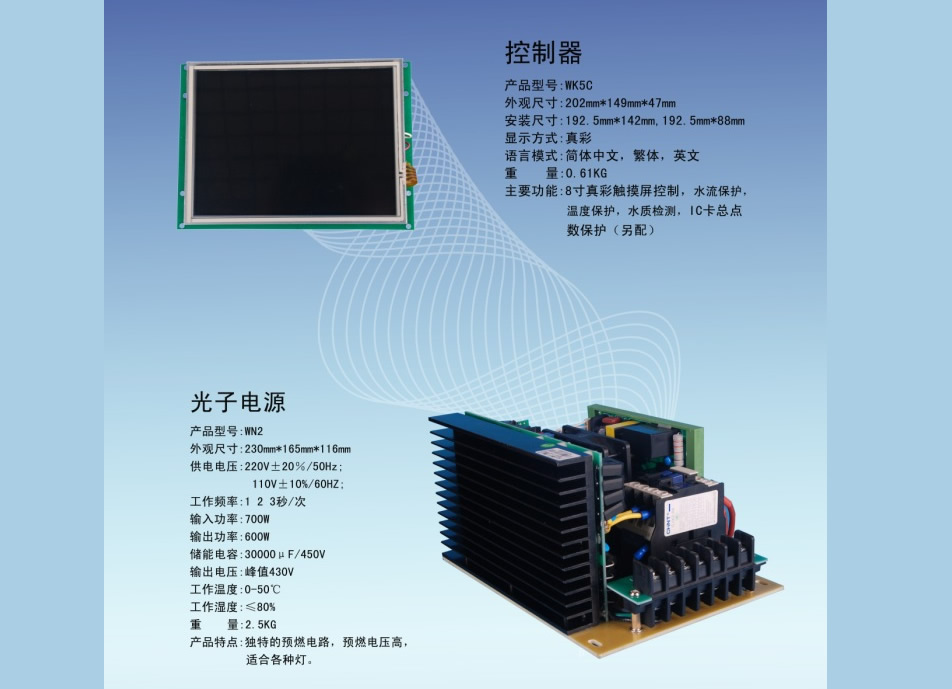

WK5C-N2 Power system

* WK4C controller

* WN2 800W IPL power supply

WK5C controller parameter:

Type	Touchscreen controller
No.	WK5C
Screen operation mode	Touch
Material	LCD screen
External dimension	228*168mm
Install dimension	218*156mm
Display window	172*129mm
Display thickness	45mm
Display mode	Truecolor liquid crystal display
Display bitmap	480point*272point
Color	64000
Language pattern	Chinese, English, Other custom
Output power adjustment	Level 50
Basic function	Water protection, water quality detection, temperature detection, temperature protection

WN2 IPL 800W power supply parameter:

Name	IPL power supply
No.	WN2 800W
Type	High power pulse
Input voltage	AC 220V±20%	AC 110V±10% (customazation)
Input frequency	50Hz, 60Hz	50Hz, 60Hz
Input current	5A	10A
Input power	1000W
Output power	800W
Output voltage	Up to 430V
Reservoir capacitance	10000uf-30000uf/450V
Work current	Average 4A, 5A up to 20A
External dimension	230mm*165mm*116mm
