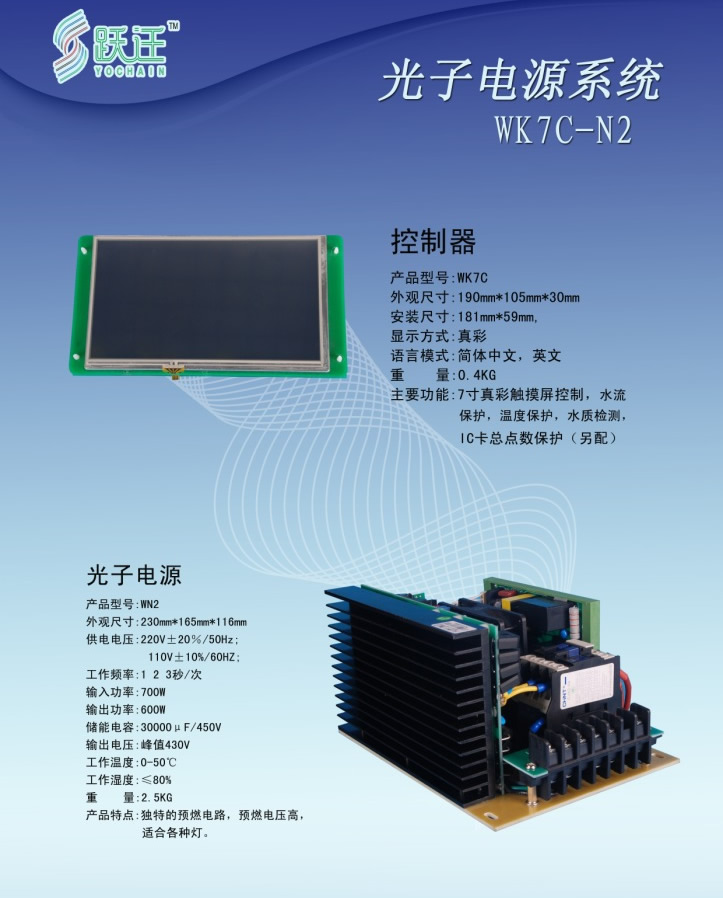

WK7C-N2 Power system include: WK7C controller, WN2 800W IPL power supply

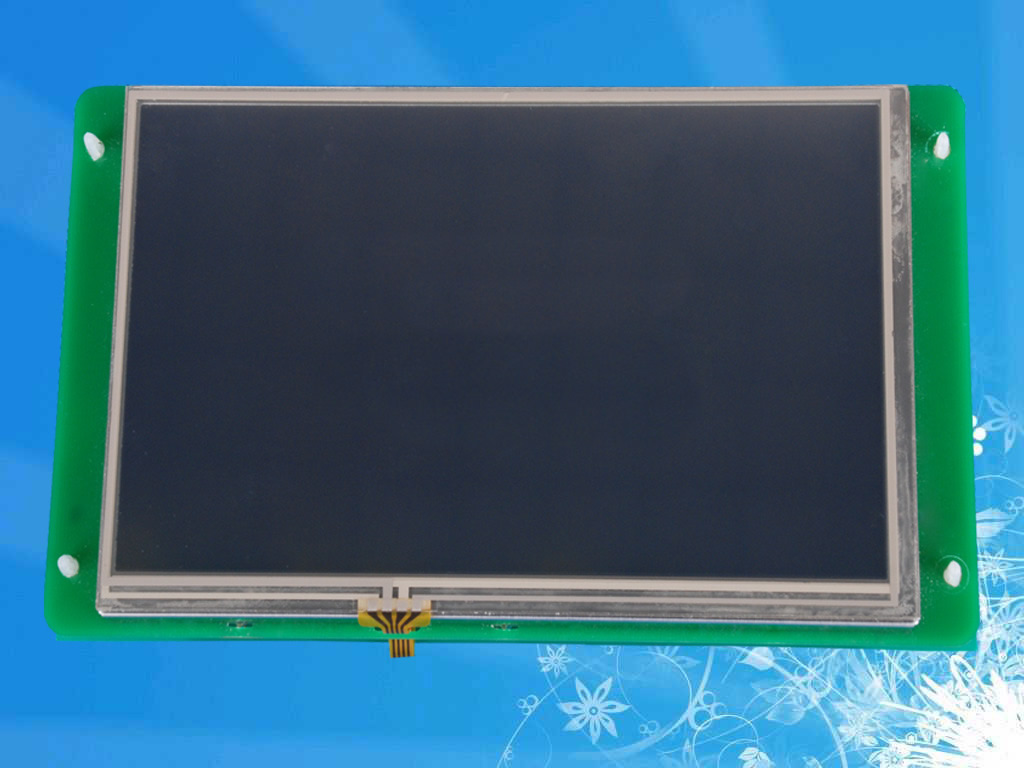

WK7C controller parameter:

Name	Touchscreen controller
No.	WK7C
Screen operation mode	Touch
Material	LCD screen
Dimension	190*105*30mm
Install dimension	154.1*85.9mm
Display window	181*59mm
Display mode	True color
Language pattern	Chinese, English, Other custom
Basic function	Water protection, water quality detection, temperature detection, temperature protection

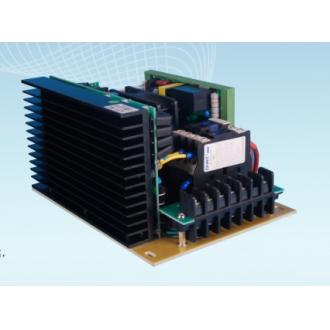

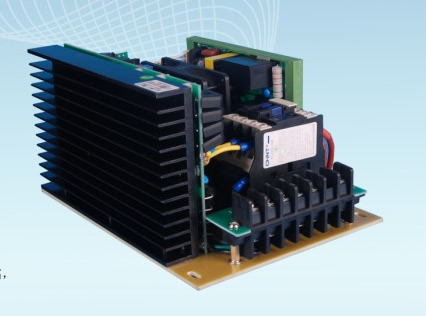

WN2 IPL 800W power supply parameter:

Name	IPL power supply
No.	WN2 800W
Type	High power pulse
Input voltage	AC 220V±20%	AC 110V±10% (customazation)
Input frequency	50Hz, 60Hz	50Hz, 60Hz
Input current	5A	10A
Input power	1000W
Output power	800W
Output voltage	Up to 430V
Reservoir capacitance	10000uf-30000uf/450V
Work current	Average 4A, 5A up to 20A
External dimension	230mm*165mm*116mm
