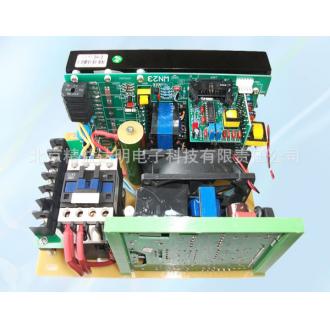

Portable Elight power system for RF IPL beauty equipment
Name: E-light Power System
No.: WK10C-N2
Include: WK10C LCD display controller, WN2 800W Elight power supply
Application: IPL beauty equipment

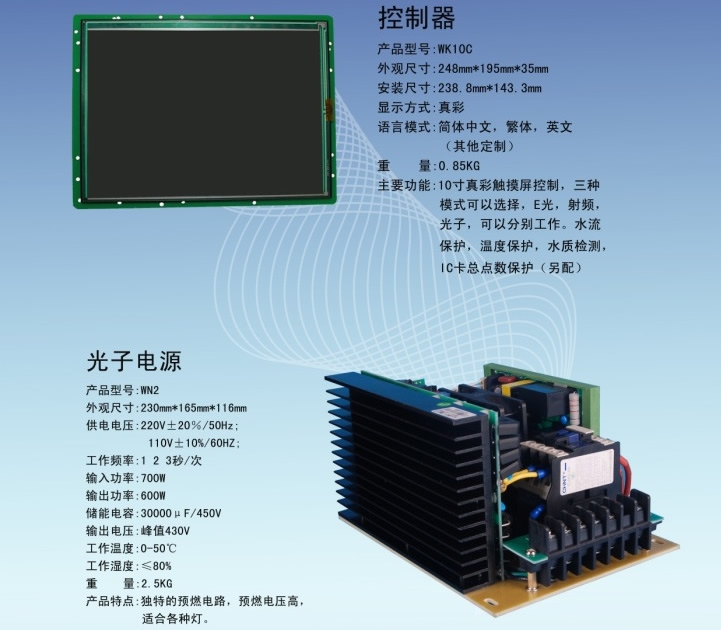

WK10C LCD touch screen controller board parameter:
|
Name |
Touchscreen controller |
|
No. |
WK10C |
|
Screen operation mode |
Touch |
|
Material |
LCD screen |
|
External dimension |
248mm*194.7mm*47mm |
|
Install dimension |
181mm*59mm |
|
Display mode |
True color |
|
Language pattern |
Chinese, English, Other custom |
|
Basic function |
Water protection, water quality detection, temperature detection, temperature protection |

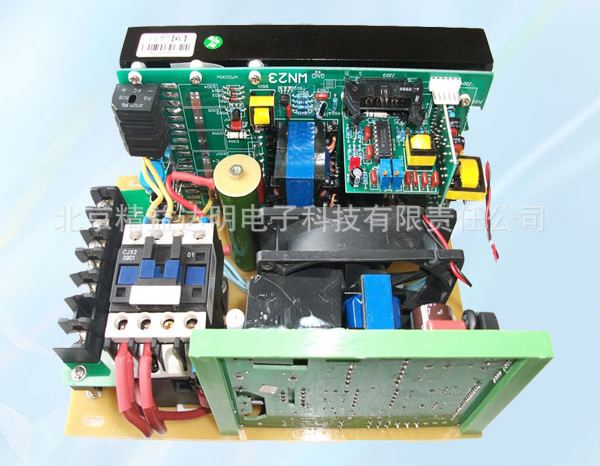

WN2 IPL laser power supply parameter:
|
Name |
IPL power supply |
|
No. |
WN2 |
|
Input voltage |
220V±20%/50Hz, 60Hz |
|
Input power |
900W |
|
Output power |
800W |
|
Stored energy electric capacity |
10000uF-30000uF/450V |
|
Max work curren |
Average 4A, peak 20A |
|
Output current |
Peak 200A~400A |
|
External dimension |
230mm*165mm*116mm |
