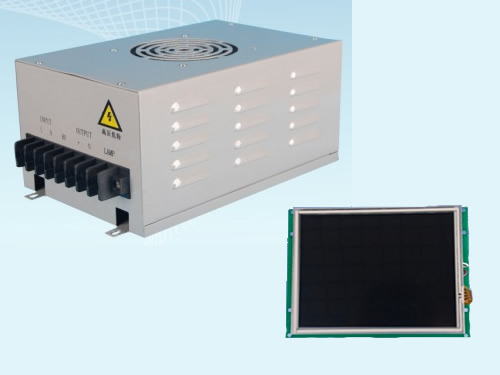

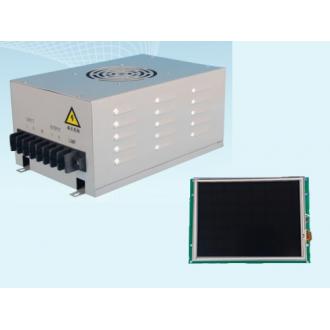

WK5C-N5S E-light Power System

WK5C-N5S Power system include: WK5C controller, WN5S Elight power supply

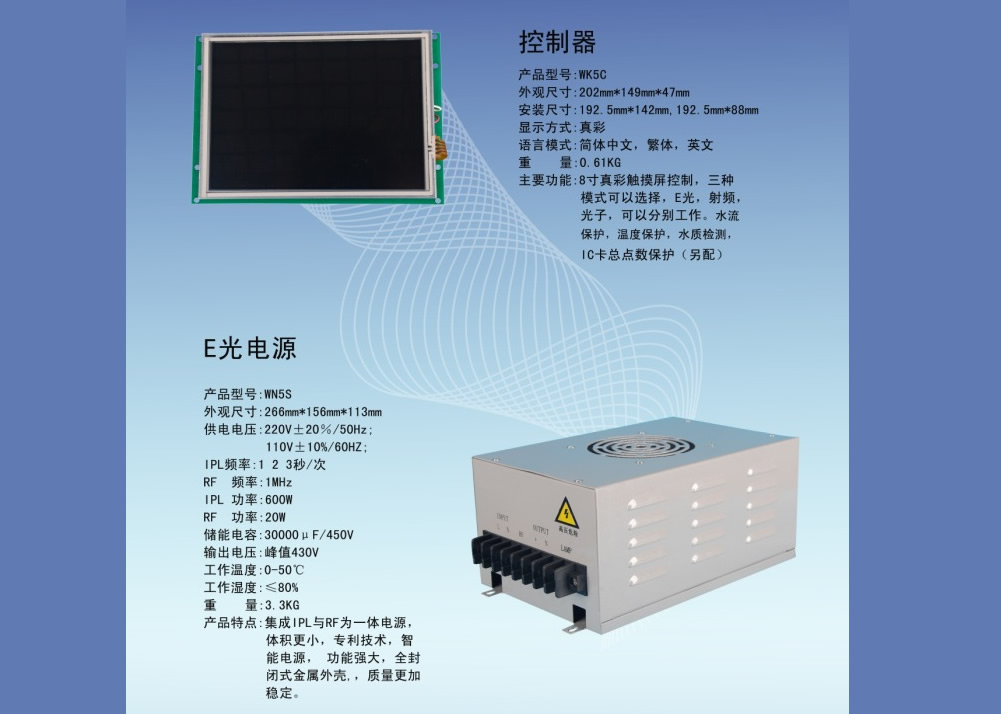

1. WK5C Touchscreen Controller

Dimension: 202*149mm*47mm

Install Size: 192.5*142mm, 192.5mm*88mm

Display Mode: 8 inch truecolor

Display Dot Matrix: 480*272

Language Switch: Chinese, English, other can be customized

2. WN5S-Elight(ipl+rf) power supply

Name: E-light(RF IPL) power supply

No.: WN5S

Type: RF+IPL

Input Power: 700W

IPL Power: 600W

RF Power: 50W

Reservoir Capacitance: 30000 uF/450V

Work Current : average 4A, peak 20A

Output Current: peak 200A~400A

Output Voltage: peak 430V

Dimension: 230*165*120(mm)

Cooling Mode: Air cooling+cooling fin
