- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：1KV
- Output current(Max)：1A
|

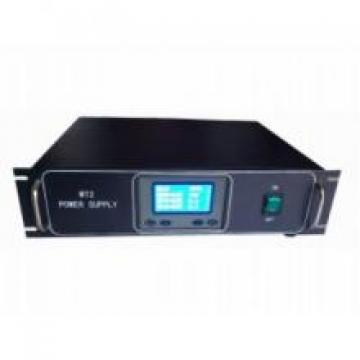

Product Name |
DC magnetron sputtering plating power supply |
|
Items No. |
WT2-DC-1KW |
|
Type |
CNC intelligence power supply |
|
Input Voltage |
AC220V±10% |
|
Output Power |
1KW |
|
Output Current |
DC 0~1A |
|
Output Voltage |
Work voltage -200V~-800V, No-Load Voltage>-1kV |
|
Output Wave |
Custom constant voltage, constant current, constant power |
|
Waveform |
mono-polar DC |
|
Work mode |
steady pressure |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Display Mode |
Chinese-English LCD display |
|
Display Content |
Working state, output voltage, output current, set value |
|
Output Protection |
Output overvoltage, output overcurrent and output offset |
|
Input Protection |
Output overvoltage, Output undervoltage, input overcurrent, open phase |
|
Safety Protection |
Grounding protection, leakage protection, external control protection, lightning protection, overheating |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
0~35℃ |
|
Humidity |
≤80% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
400*95*370(mm) |
|
Note |
Factory default analog interface |
Control Mode:
- Computer panel and buttons control
- Analog signal control: TTL potential, can control the work stop, the output voltage, output current or output power, external open circuit protection (generally for water protection)
- Digital interface control can be custoimization: RS-485 communications, RS-232 232 interface
Feature:
- Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.
- Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.
- Can plate insulation film, do not produce arc, load to adapt to a wide range
CustomizedWT Series high-voltage pulsed power supply
|
Type |
Output Power |
Maximum Current |
Volume(mm) |
Cooling Mode |
|
WT2 |
2KW |
2A |
400*95*370 |
Wind |
|
WT5 |
5KW |
6A |
480*135*380 |
Wind |
|
WT10 |
10KW |
12A |
480*135*380 |
Wind |
|
WT20 |
20KW |
25A |
480*135*380 |
Water |
|
WT40 |
40KW |
50A |
600*230*600 |
Water |
|
WT60 |
60KW |
75A |
600*230*600 |
Water |
|
WT80 |
80KW |
100A |
600*460*600 |
Water |
|
WT100 |
100KW |
125A |
600*460*600 |
Water |
(1) Input voltage: AC 3 phase 4 wire, 380V±10%
(2) Output Voltage: operating voltage 200~800V,open-circuit voltage>1KV
(3) Output:single –stage pulse power output frequency 40KHz, DC power output is DC.
(4) TTL control: High level (5±2V),low level (0~2V)
(5) Apply environment: temperature(0~35)ºC, humidity≤85%
(6) External control:DB9,9 pin interface(also optional stimulation or digital interface)
(7) Maximum input current:output current+20%
(8) Maximum input power: output power +10%
Customized special power supply
|
Model name |
Output power |
Output voltage |
Volume(mm) |
cooling |
|
HV DC bombardment power supply |
5kw,10kw |
-5kv |
480*135*380 |
air |
|
HV DC bombardment power supply |
20kw |
-5kv |
480*135*380 |
water |
|
HV mid frequency bombardment power supply |
5kw,10kw |
5kv |
480*135*380 |
air |
|
HV pulsed bias power supply |
20kw |
-5kv |
480*135*380 |
water |
|
Diode sputtering power supply |
5kw |
-5kv |
480*135*380 |
air |
|
HV capacitor charging power supply |
10kw |
50kv |
480*135*380*2 |
air |
|
Seeds genetically modified (gm) power supply |
5kw |
30kv |
480*135*380*2 |
air |
|
Air purification power supply |
500w |
10-20kv |
200*98*50 |
Natural cooling |
|
Multi-function high-voltage power supply |
1kw |
20kv,1kv |
140*280*400 |
air |
|
Adjustable high voltage power supply |
500w |
30kv |
330*240*140 |
air |
|
Electron gun high-voltage power supply |
120kw |
