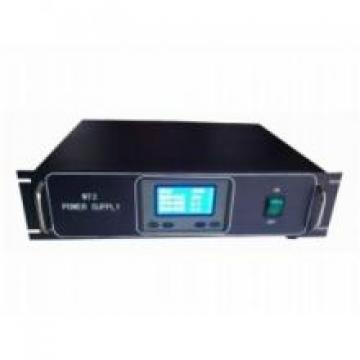

WT2-50KV/1000W/20mA Adjustable high voltage switch power supply

• Input voltage：220V
• Output power：1KW
• Output voltage(Max)：50KV
• Output current(Max)：20mA
• Adjustable：Yes
• Custom：Yes
• Cooling mode：Air cooling

Parameter:

1. Name: high voltage pwoer supply

2. Number: WT2-HV-50KV-1000W-20mA

3. Input Voltage: AC 220V±10%; AC 110V(options)

4. Output Voltage: 0~5KV

5. Output Current: 0~20mA

6. Output Power: 1000W

7. Work Temperature: 0~35℃

8. Humidity: ≤85%

9. Cooling Mode: air cooling

10. Dimension: 400*95*370(mm)

11. Install Size: 380*70(mm)

12. Control Mode: PC panel press buttons

13. Interface Control: TTL level, work, stop, adjust output voltage

14. Analog signal control: TTL level, work, stop, output voltage, output current, output power, open circuit protection (generally used for water flow protection)

15. Steady voltage, steady current, steady power, all adaptive, automatic switching

16. Digital Interface: RS485, RS232(options)

17. Display Mode: English/Chinese LCD display screen, various parameters and status.

18. External Control Interface Output: voltage signal

19. Feature: short circuit protection, water flow protection

20. Efficiency: ≥90%

Application:

Various fields requiring 5KV high voltage. Especially suitable for the occasions where the load characteristics are unstable and uncertain. Such as vacuum discharge, gas discharge, liquid conduction, insulation test and so on.
