60KV/5KW regulated high voltage power supply WT5-5KW

Price: $3333.3 $3333.3

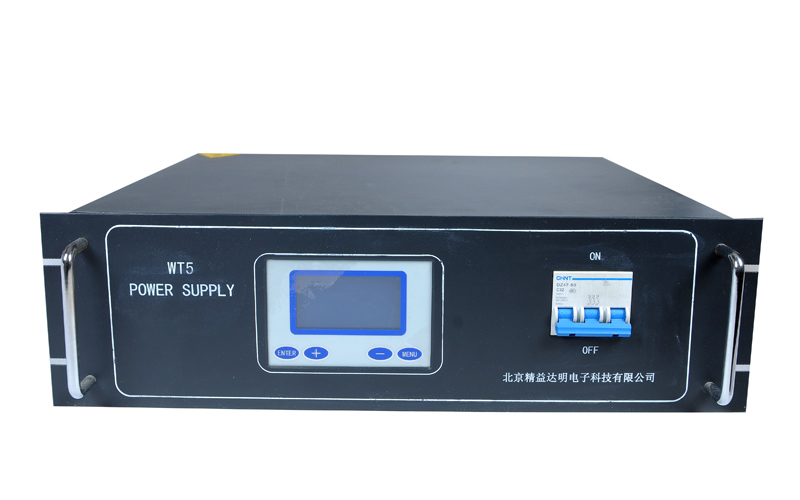

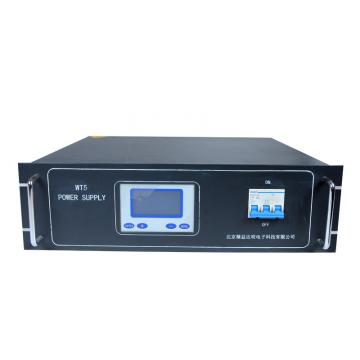

60KV/5KW regulated high voltage power supply WT5-5KW
  • Brand: YOCHAIN
  • Time:
  • Weight:10.000kilogram
  • Serial number:WT5-5KW/60KV
Rating:
100 %
0 comments
  • Input voltage:380V
  • Output power:5KW
  • Output voltage(Max):60KV
  • Output current(Max):150mA
  • Adjustable:Yes
  • Custom:Yes
  • Cooling mode:Air cooling
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction
Parameter:
  1. Name: high voltage pwoer supply
  2. Number: WT5-HV-50KV-5KW
  3. Input Voltage: AC 380V±10%
  4. Output Voltage: 50KV
  5. Output Current: 0.1A
  6. Output Power: 5000W
  7. Work Temperature: -35~45℃
  8. Humidity: ≤85%
  9. Cooling Mode: air cooling
  10. Dimension: 480*135*380(mm)
  11. Control Mode: PC panel press buttons
  12. Interface Control: TTL level, work, stop, adjust output voltage
  13. Analog signal control: TTL level, work, stop, output voltage, output current, output power, open circuit protection (generally used for water flow protection)
  14. Steady voltage, steady current, steady power, all adaptive, automatic switching
  15. Digital Interface: RS485, RS232(options)
  16. Display Mode: English/Chinese LCD display screen, various parameters and status.
  17. External Control Interface Output: voltage signal
  18. Feature: short circuit protection, water flow protection
  19. Efficiency: ≥90%
