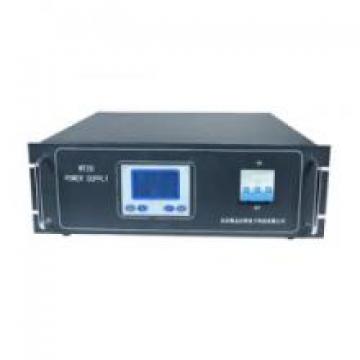

Regulated high voltage switching power supply WT20-20KW

Price: $6666.6 $13333.3
Regulated high voltage switching power supply WT20-20KW
  • Brand: YOCHAIN
  • Time:
  • Weight:15.000kilogram
  • Serial number:WT20-20KW
Rating:
100 %
0 comments
  • Input voltage:380V
  • Output power:20KW
  • Output voltage(Max):60KV
  • Output current(Max):600mA
  • Adjustable:Yes
  • Custom:Yes
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction
Parameter:
  1. Name: high voltage pwoer supply
  2. Number: WT20
  3. Input Voltage: AC 380V±10%
  4. Output Voltage: 30KV~60KV
  5. Output Current: 0~666mA
  6. Output Power: 20KW
  7. Output Waveform: DC
  8. Work Temperature: -35~45℃
  9. Humidity: ≤85%
  10. Cooling Mode: water cooling
  11. Dimension: 480*135*380(mm)
  12. Control Mode: PC panel press buttons
  13. Interface Control: TTL level, work, stop, adjust output voltage
  14. Analog signal control: TTL level, work, stop, output voltage, output current, output power, open circuit protection (generally used for water flow protection)
  15. Steady voltage, steady current, steady power, all adaptive, automatic switching
  16. Digital Interface: RS485, RS232(options)
  17. Display Mode: English/Chinese LCD display screen, various parameters and status.
  18. External Control Interface Output: voltage signal
  19. Feature: short circuit protection, water flow protection
  20. Efficiency: ≥90%
