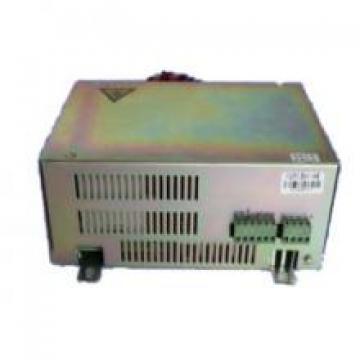

40kV/50mV DC high voltage sources customized WJE1

• Input voltage：220V/110V
• Output power：2KW
• Output voltage(Max)：40KV
• Output current(Max)：50mA

40kV / 50mV DC high voltage sources customized

Parameter:

• Product Name: 40kV/50mV DC high voltage sources
• Item NO.: WJE1-DC-40kV/50mV
• Brand Name: yochain
• Input Voltage: AC220V±10% 50Hz±10%
• Output Power: 0~2kW
• Output Current: DC 50mA(max)
• Output Voltage: DC 40KV(max)
• Response Time: ≤1mS
• Optical Coupler Interface Control: DC(5±2V) / bright dipping
• Laser Regulation: 1. Output voltage is adjusted by the potentiometer; 2. Control by PWM (amplitude of TTL level)
• Laser Switch: control by manual button or optocoupler interface control
• Cooling Mode: air-cooling
• Temperature: -10~+40℃
• Humidity: ≤85%
• Size: 210*160*95(mm)
